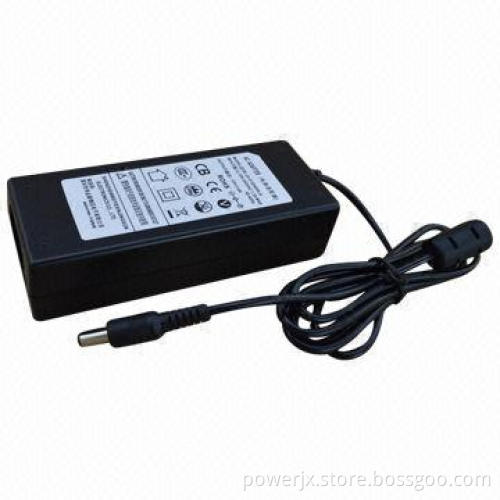

JX Hot-selling 48W Desktop Power Adapters
  • JX Hot-selling 48W Desktop Power Adapters
  • JX Hot-selling 48W Desktop Power Adapters
JX Hot-selling 48W Desktop Power Adapters
JX Hot-selling 48W Desktop Power Adapters

JX Hot-selling 48W Desktop Power Adapters

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Applications: notebook, mini speaker, set-top box, LCD/LED display, TV, scanner, printer and more
  • Features:
    • Universal AC input/full range
    • 3 pole AC inlet
    • Protections: short-circuit/overload/over-voltage
    • Fully enclosed plastic case
    • Approvals: CE, CB and CCC
    • LED indicator for power on
    • No load power consumption: Warranty: 3 years
  • Model: JX-C1253800-H
  • Input:
    • Input voltage: AC 90 to 264V, 50 to 60Hz
    • Rated voltage: 100 to 240V
    • Input current: 1.2A maximum
    • Inrush current: ≤20A
    • Leakage current:
    • Output:
      • Maximum power: 60W
      • Output voltage: DC 12V ± 5%
      • Ripple wave (mVp-p): ≤100mV
      • Linear modulate: ±0.5% maximum
      • Temperature coefficient: ±0.02%/°C
      • Start time: ≤3s (100V AC input, full load)
      • Guard time: ≥20ms (240V AC input, full load)
      • Output standard: 12V, 5A
    • Protection:
      • Override protection: 115 to 200%vA, automatic recovery
      • Short-circuit protection: automatic recovery (1 channel)
    • Insulation:
      • Insulation strength: 3,000V AC/5mA, 1min
      • Insulation resistance: ≥30MΩ, DC 500V
    • Environment:
      • Working temperature: 0 to 40°C, 20 to 90%RH non-condensing
      • Store temperature: -20 to 80°C, 20 to 90%RH non-condensing
    • Standards:
      • Safety standards: GB4943-2001, IEC60950 and EN55022
      • EMC: En55022
      • Efficiency: ≥80%
    • Size (L x W x H): 125 x 51 x 32mm
  • Universal AC input/full range
  • 3 pole AC inlet
  • Protections: short-circuit/overload/over-voltage
  • Fully enclosed plastic case
  • Approvals: CE, CB and CCC
  • LED indicator for power on
  • No load power consumption: Warranty: 3 years
  • Input voltage: AC 90 to 264V, 50 to 60Hz
  • Rated voltage: 100 to 240V
  • Input current: 1.2A maximum
  • Inrush current: ≤20A
  • Leakage current:
  • Output:
    • Maximum power: 60W
    • Output voltage: DC 12V ± 5%
    • Ripple wave (mVp-p): ≤100mV
    • Linear modulate: ±0.5% maximum
    • Temperature coefficient: ±0.02%/°C
    • Start time: ≤3s (100V AC input, full load)
    • Guard time: ≥20ms (240V AC input, full load)
    • Output standard: 12V, 5A
  • Protection:
    • Override protection: 115 to 200%vA, automatic recovery
    • Short-circuit protection: automatic recovery (1 channel)
  • Insulation:
    • Insulation strength: 3,000V AC/5mA, 1min
    • Insulation resistance: ≥30MΩ, DC 500V
  • Environment:
    • Working temperature: 0 to 40°C, 20 to 90%RH non-condensing
    • Store temperature: -20 to 80°C, 20 to 90%RH non-condensing
  • Standards:
    • Safety standards: GB4943-2001, IEC60950 and EN55022
    • EMC: En55022
    • Efficiency: ≥80%
  • Size (L x W x H): 125 x 51 x 32mm
  • Maximum power: 60W
  • Output voltage: DC 12V ± 5%
  • Ripple wave (mVp-p): ≤100mV
  • Linear modulate: ±0.5% maximum
  • Temperature coefficient: ±0.02%/°C
  • Start time: ≤3s (100V AC input, full load)
  • Guard time: ≥20ms (240V AC input, full load)
  • Output standard: 12V, 5A
  • Override protection: 115 to 200%vA, automatic recovery
  • Short-circuit protection: automatic recovery (1 channel)
  • Insulation strength: 3,000V AC/5mA, 1min
  • Insulation resistance: ≥30MΩ, DC 500V
  • Working temperature: 0 to 40°C, 20 to 90%RH non-condensing
  • Store temperature: -20 to 80°C, 20 to 90%RH non-condensing
  • Safety standards: GB4943-2001, IEC60950 and EN55022
  • EMC: En55022
  • Efficiency: ≥80%
