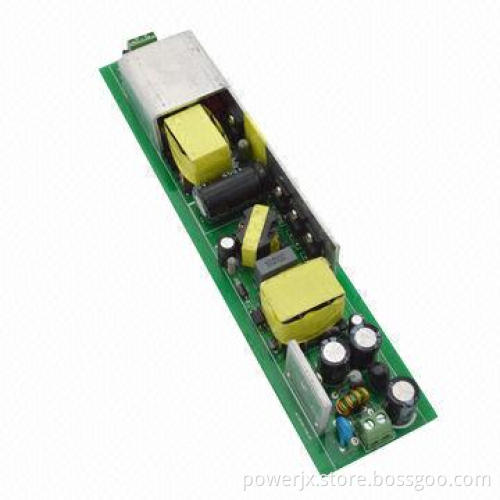

90 to 240V Switching LED Power Supply, 100W Power, High-performance, High-reliability

90 to 240V Switching LED Power Supply, 100W Power, High-performance, High-reliability

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Used for: LED furniture, lamps and lanterns, the LED mining tunnel, plant lighting, outdoor lighting, road lighting, indoor commercial lighting, landscape lighting, industrial and mining tunnel indoor commercial lighting, lamps and lanterns of consumer retail DIY drive power supply in areas such as
Energy-saving, environment-protection, green, low-carbon new light source
High-performance, high-reliability, full aluminum shell, Rubicon capacitance

Specifications:

Built-in output over-voltage, OCP, SCP input:
- Output voltage: 90-310V AC, 50/60Hz, 0.6-2A
- Star inrush current: when cooling 50A/310V AC
- Line regulation: ±0.5 (maximum)
- Output voltage precision:: +5-3%
Temperature coefficient: ±0.02%/°C
Starting time : ≤1 second (240V input, 1o = 100%)
Protection time : ≥20ms (240V input, 1o = 100%)
Protection function:
- Overload protection: 1.6, 2.2 and 2.7A
- Over-voltage protection: 100% recovery
- Short-circuit protection; continuous short-circuit is not damaged, can be automatically restored after normal
Dielectric strength: input-output: 3,000V/10mA, 1 minute
Insulation resistance: input-output: ≥50MΩ, 500V DC
Environment:
- Working temperature: 0 to 40°C, 10-90% RH (non-condensation)
- Storage temperature: -20 to 85°C, 10-90% RH (non-condensation)
- Sea level elevation:
Structure:
- Cooling way: nature cool
- Measurement and weight: 245 x 59mm (60W) about 263g, 245.2 x 59mm (80W) about 263g and 256 x 59mm (100W) about 263g
- EMC: comply with EN55022B, GB9254 and more standard

Used for: LED furniture, lamps and lanterns, the LED mining tunnel, plant lighting, outdoor lighting, road lighting, indoor commercial lighting, landscape lighting, industrial and mining tunnel indoor commercial lighting, lamps and lanterns of consumer retail DIY drive power supply in areas such as

Energy-saving, environment-protection, green, low-carbon new light source

High-performance, high-reliability, full aluminum shell, Rubicon capacitance

Built-in output over-voltage, OCP, SCP input:

Output voltage: 90-310V AC, 50/60Hz, 0.6-2A
Star inrush current: when cooling 50A/310V AC
Line regulation: ±0.5 (maximum)
Output voltage precision:: +5-3%

Temperature coefficient: ±0.02%/°C

Starting time : ≤1 second (240V input, 1o = 100%)

Protection time : ≥20ms (240V input, 1o = 100%)

Protection function:

Overload protection: 1.6, 2.2 and 2.7A
Over-voltage protection: 100% recovery
Short-circuit protection; continuous short-circuit is not damaged, can be automatically restored after normal

Dielectric strength: input-output: 3,000V/10mA, 1 minute

Insulation resistance: input-output: ≥50MΩ, 500V DC

Environment:

Working temperature: 0 to 40°C, 10-90% RH (non-condensation)
Storage temperature: -20 to 85°C, 10-90% RH (non-condensation)
Sea level elevation:

Structure:

Cooling way: nature cool
Measurement and weight: 245 x 59mm (60W) about 263g, 245.2 x 59mm (80W) about 263g and 256 x 59mm (100W) about 263g
EMC: comply with EN55022B, GB9254 and more standard
