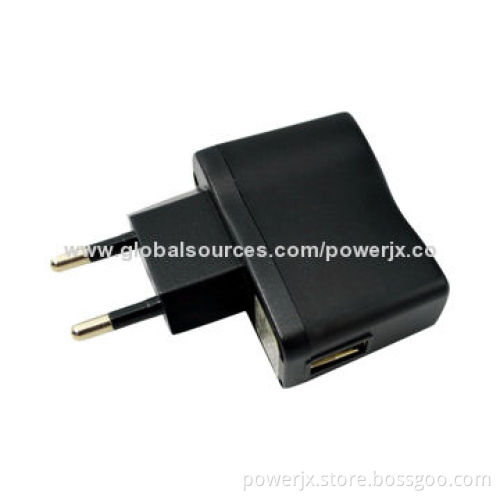

Dependable performance universal plug adapter, short-circuit protection

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Input voltage: 90-264V AC at 50-60Hz

Rate voltage: 100-240V

Input current: 0.5A (maximum)

Inrush current: ≤20A

Leakage current: <1mA

Output maximum power: 5W

Output voltage: 5V DC ±5%

Ripple wave (mVp-p): ≤100mV

Line modulate: ±5% (maximum)

Temperature coefficient: ±0.02%/°C

Start time: ≤3s(100VAC input, full-load)

Guard time: ≥20ms (240V AC input, full-load)

Output standard: 5V 1A

Override protection: 115-200%, automatic recovery

Short-circuit protection

1 channel: automatic recovery

Insulation strength: 3000VAC/5mA, 1min

Insulation resistance: ≥30MΩ, 500V DC

Environment working temperature: 0 to 40°C, 20-90% RH (non-condensing)

Store temperature: -20 to 80°C, 20-90% RH (non-condensing)

Standards safety standards: GB 4943-2001, IEC 60950, EMC GB9254-2008, GB 17625-2003 and EN 55022

Efficiency: ≥72%

Size: (L)62*(W)41.5*(H)29mm
