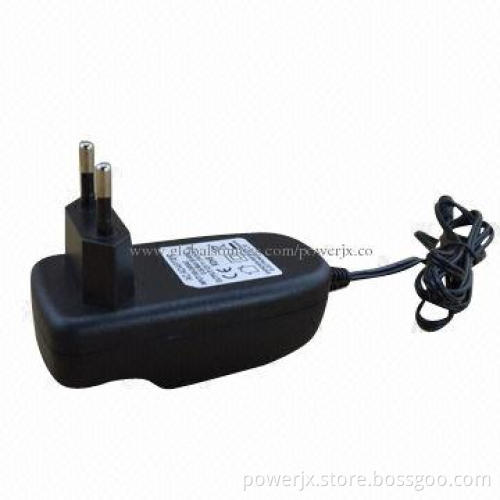

9V Power Adapter, High-quality 12W Series EU/US/AU/UK with CCC/CB/CE/FCC/SAA/UL Mark

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Specifications:

Voltage: 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 15, 16.5, 20, 21.5, 24V
With CE, RoHS, UL, CB, CCC marks
12W (maximum)
Delivery time: 7-15 days
Samples are available
Model: JX-C1201000-A
Input voltage: 90-264V AC, 50-60Hz
Rate voltage: 100-240V
Input current: 0.5A (maximum)
Leakage current: <1mA
Output maximum power: 12W
Output voltage: 12V DC ±5%
Ripple wave: ≤100mVp-p
Linear modulate: ±5% (maximum)
Temperature coefficient: ±0.02%/°C
Starting time: ≤3 seconds (100V AC input, full load)
Guard time: ≥20ms (240V AC input, full load)
Output standard: 12V 1A
Protection override protection: 115-200%VA, automatic recovery
Short-circuit protection 1 channel: automatic recovery
Insulation strength: 3,000V AC/5mA, 1 minute
Insulation resistance: ≥30MΩ, 500V DC
Environment working temperature: -20-90% RH (non-condensing)
Store temperature: -20-90% RH (non-condensing)
Standards safety standard: GB4943-2001 IEC60950
EMC En55022
Efficiency: ≥80%
Size (L*W*H): 90*43*33mm
