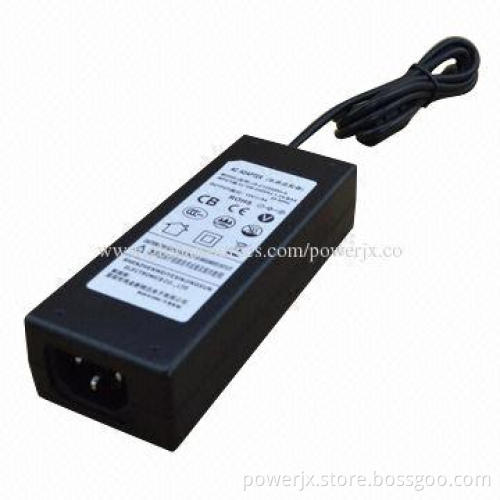

Desktop AC Adapter 12V 5A Power Supply 60W With 5.5*2.1mm Connector

Desktop AC Adapter 12V 5A Power Supply 60W With 5.5*2.1mm Connector

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Desktop style power adapter 12V 5A with high efficiency
High efficiency, ultrasonic laminaton and natural cooling
High reliability, ultra no-load/standby power consumption, meets green power requirments
Light & convenient plug in
Application: Note-book, mini speaker, set-top box, LCD/LED Display&TV and more
On-line LED Power indicator

Specifications:

Model: JX-C0606000-Z
Input
- Input voltages: AC 90-264V Ac, 50-60Hz
- Rate voltages: 100-240V
- Input current: 1.2A max
- Inrush current: ≤20A
- Leakage currnet: <1mA
Output:
- Max power: 48W
- Output voltage: DC 12V ± 5%
- Ripple wave: (mVp-p): ≤100mV
- Linear modulate: ±5%max
- Temperature coefficient: ±0.02%/°C
- Start time: ≤3s (100VAC input, full load)
- Guard time: ≥20ms (240VAC input, full load)
- Output standard: 12V 4A
Protection:
- Override protection: 115~200%vA, automatic recovery
- Short-circuit protection: 1 channel: automatic recovery
Insulation:
- Insulation strength: 3000VAC/5mA, 1MIN
- Insulation resistance: ≥30MΩ, DC 500V
Environments
- Working temperatures: 0~40°C, 20~90%RH non-condensing
- Store temperatures: -20~80°C, 20~90% RH non-condensing
- Safety standards: GB4943-2001, IEC60950, EMC and En55022
- Efficiency: ≥80%
Size L*W*H: 125*51*32mm

Advantages:

Factory price & fast delivery
High quality with cheap price
Over current protection and over voltage protection
OEM/ODM, customers design is welcome

Desktop style power adapter 12V 5A with high efficiency

High efficiency, ultrasonic laminaton and natural cooling

High reliability, ultra no-load/standby power consumption, meets green power requirments

Light & convenient plug in

Application: Note-book, mini speaker, set-top box, LCD/LED Display&TV and more

On-line LED Power indicator

Model: JX-C0606000-Z

Input

Input voltages: AC 90-264V Ac, 50-60Hz
Rate voltages: 100-240V
Input current: 1.2A max
Inrush current: ≤20A
Leakage currnet: <1mA

Output:

Max power: 48W
Output voltage: DC 12V ± 5%
Ripple wave: (mVp-p): ≤100mV
Linear modulate: ±5%max
Temperature coefficient: ±0.02%/°C
Start time: ≤3s (100VAC input, full load)
Guard time: ≥20ms (240VAC input, full load)
Output standard: 12V 4A

Protection:

Override protection: 115~200%vA, automatic recovery
Short-circuit protection: 1 channel: automatic recovery

Insulation:

Insulation strength: 3000VAC/5mA, 1MIN
Insulation resistance: ≥30MΩ, DC 500V

Environments

Working temperatures: 0~40°C, 20~90%RH non-condensing
Store temperatures: -20~80°C, 20~90% RH non-condensing
Safety standards: GB4943-2001, IEC60950, EMC and En55022
Efficiency: ≥80%

Size L*W*H: 125*51*32mm

Input voltages: AC 90-264V Ac, 50-60Hz

Rate voltages: 100-240V

Input current: 1.2A max

Inrush current: ≤20A

Leakage currnet: <1mA

Max power: 48W

Output voltage: DC 12V ± 5%

Ripple wave: (mVp-p): ≤100mV

Linear modulate: ±5%max

Temperature coefficient: ±0.02%/°C

Start time: ≤3s (100VAC input, full load)

Guard time: ≥20ms (240VAC input, full load)

Output standard: 12V 4A

Override protection: 115~200%vA, automatic recovery

Short-circuit protection: 1 channel: automatic recovery

Insulation strength: 3000VAC/5mA, 1MIN

Insulation resistance: ≥30MΩ, DC 500V

Working temperatures: 0~40°C, 20~90%RH non-condensing

Store temperatures: -20~80°C, 20~90% RH non-condensing

Safety standards: GB4943-2001, IEC60950, EMC and En55022

Efficiency: ≥80%

Factory price & fast delivery

High quality with cheap price

Over current protection and over voltage protection

OEM/ODM, customers design is welcome
