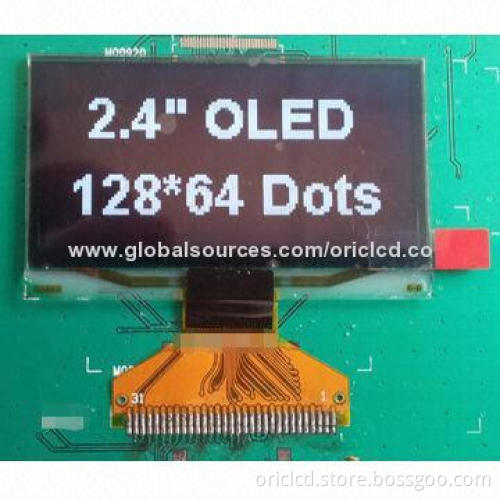

Yellow OLED Display Module with 128 x 64 Dots, 2.4-inch Size, Suitable for Mechanical Instruments

Get Latest Price

Payment Type:: T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union

Product Description

Features:

OLED full color 128x32 dots dot matrix display module
Characteristics: high-brightness, self emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low-power consumption

Basic specifications:

Diagonal screen size: 2.4"
Number of pixels: 128x64
Display color: yellow
Driver IC: SSD1303
Interface: SPI, parallel and I2C

Mechanical specifications:

Panel size: 60.5x56.6x2.01mm
Active area: 55.01x27.49mm
Pixel pitch: 0.43x0.43mm
Pixel size: 0.40x0.40mm

OLED full color 128x32 dots dot matrix display module

Characteristics: high-brightness, self emission, high-contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low-power consumption

Diagonal screen size: 2.4"

Number of pixels: 128x64

Display color: yellow

Driver IC: SSD1303

Interface: SPI, parallel and I2C

Panel size: 60.5x56.6x2.01mm

Active area: 55.01x27.49mm

Pixel pitch: 0.43x0.43mm

Pixel size: 0.40x0.40mm
