240 x 128 Dots Graphic Gray Mode, Positive, Transflective STN LCD Module

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union

Product Description

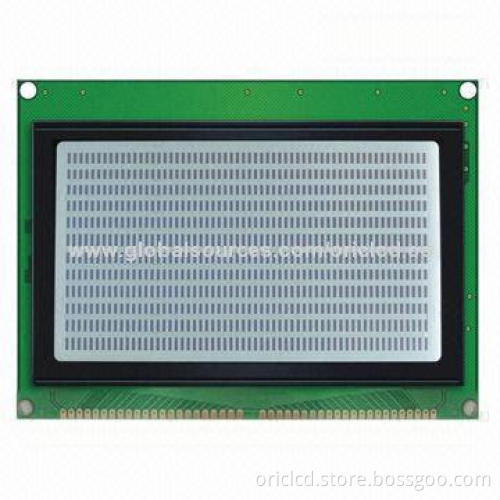

240 x 128 pixels COB graphics LCD module

Overall dimensions: 159.4*101*9.5mm (max)

Viewing area: 124*70mm

Transmissive polarizer type (optional reflective/reflective)

Side LED backlight (optional bottom LED backlight /EL backlight/no backlight)

Yellow green backlight (optional white/blue/red/amber)

LCD STN yellow green (optional LCD TN/HTN/STN gray/FSTN)

Viewing angle: 12:00 (optional 6:00)

Standard temperature range (optional wide temperature)

IC: RA6963
