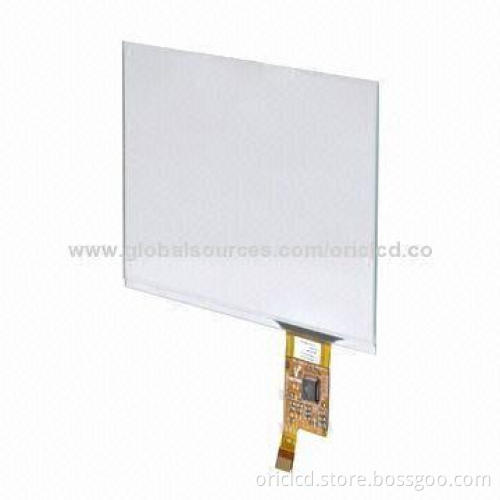

5-inch capacitive touch screen panel, customized services are accepted

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union

Product Description

Specific data:

Structure and material: G + G
Number of touch: five or multi-touch
Sensor dimensions: (W) 74.56 x (H) 146.22 x (D) 1.4mm
Active area: (W) 65.8 x (H) 109mm
Cover glass: ordinary glass with black border silk print (special requirement for cover lens need tailor-made)
Taylor-made: available (please send us structure drawing of customer’s design or list all customer’s requirement)

Taylor-made options:

Functions: touch with water and gloves, anti-glare, anti-fingerprint and anti-explosion

Application area: industrial, medical, industrial-control, handset device, HMI, instrument and meter

Working temperature: -30 to +80°C

Features:

Standard size and structure:

2.8-inch 240 x 320p resolution, module (TFT + TP) and single TP supply, cover lens need tailor-made
4.3-inch 480 x 272p resolution, module (TFT + TP) and single TP supply, cover lens need tailor-made
5.0-inch 800 x 480p resolution, module (TFT + TP) and single TP supply, cover lens need tailor-made
5.7-inch 640 x 480p resolution, module (TFT+ TP + cover lens) and single TP supply
7.0-inch 800 x 480p resolution, module (TFT + TP) and single TP supply, cover lens need tailor-made
8.0-inch 800 x 600p resolution, module (TFT + TP) and single TP supply, cover lens need tailor-made
10.2-inch 800 x 480p resolution, module (TFT + TP + cover lens) and single TP supply
We also supply 10.4-, 15.6-, 17- and 21.5-inch single touch panel

Structure and material: G + G

Number of touch: five or multi-touch

Sensor dimensions: (W) 74.56 x (H) 146.22 x (D) 1.4mm

Active area: (W) 65.8 x (H) 109mm

Cover glass: ordinary glass with black border silk print (special requirement for cover lens need tailor-made)

Taylor-made: available (please send us structure drawing of customer’s design or list all customer’s requirement)

Part: cover lens, sensor and FPC

Silk print: logo and border

Shapes: arc, circle (round), rectangle and square

Cover lens thickness: 0.7-5mm

Optical bonding glass

Integrated electrical and mechanical design consideration

Focus on industrial, medical and automotive markets

2.8-inch 240 x 320p resolution, module (TFT + TP) and single TP supply, cover lens need tailor-made

4.3-inch 480 x 272p resolution, module (TFT + TP) and single TP supply, cover lens need tailor-made

5.0-inch 800 x 480p resolution, module (TFT + TP) and single TP supply, cover lens need tailor-made

5.7-inch 640 x 480p resolution, module (TFT+ TP + cover lens) and single TP supply

7.0-inch 800 x 480p resolution, module (TFT + TP) and single TP supply, cover lens need tailor-made

8.0-inch 800 x 600p resolution, module (TFT + TP) and single TP supply, cover lens need tailor-made

10.2-inch 800 x 480p resolution, module (TFT + TP + cover lens) and single TP supply

We also supply 10.4-, 15.6-, 17- and 21.5-inch single touch panel
