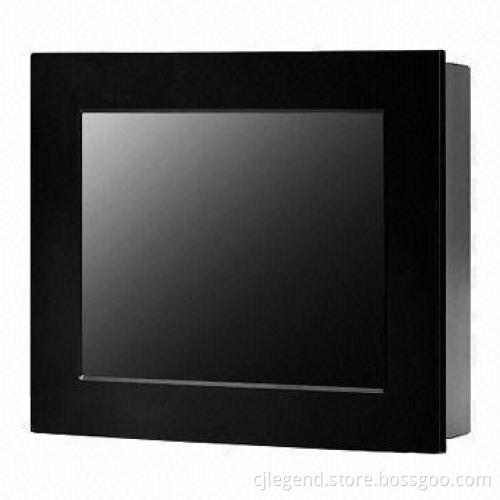

12.1-inch industrial HD multifunctional Tablet PC

Model No.: CJ-PC12

12-inch industrial HD multifunctional all-in-one touch PC isespecially applied to Industrial fields, provided high qualityimage, the structure solid, rugged steel chassis, and strengthenthe organic board protection

It can be easily mounted touch screen, tempered glass displaysurface box, and It is dust-, shock- and water-resistant

Features:

Panel color: black (can be optional)

Installation: rack-mounted

Touch screen (optional, interface can be set aside)

Type: 4-wire resistive (5-wire resistive optional)

Resolution: 1024 x 768

Low-E characteristic of LCD screen is not flashing, compared tothe traditional CRT, can reduce the dim age to your eyes

Parameters:

Panel specifications:

Size: 12.1-inch LCD

Aspect ratio: 4:3

Pixel pitch: 0.240 (H)mm x 0.240 (V)mm

Resolution: 1024 x 768(XGA)

View angle: L/R: 80/80 U/D:80/60

Luminance: 450 nits

Contrast ratio: 600 minimum

Response time: TR10ms TF30ms

Colors: 262, 144

Video format: support PAL/NTSC/ASCEM etc.

Signal input: VGA, CVBS

Horizontal frequency: 48.2kHz

Vertical frequency: 60Hz

Touch screen:

Screen thickness: 2.3mm

Touch screen resolution: 4096 x 4096

Response time: below 10ms

Light transmission: >80%

Luminance: 450 nits

Touch media: finger, stylus, rubber, cloth or leather

Durability more than 10,000,000 single touches

MTBF: >60,000 hours

Operation temperature: -10 to 60 deg. C

Storage temperature: -20 to 70 deg. C

Operation humidity: 10 to 90%RH

Storage humidity: 5 to 95%RH

System:

CPU (Intel Atom N270) 1.6GHz Core Frequency .533MHz FSB .512KBsL2 cache. 2.5W low TDP
Chipset: Intel® 945GSE Express Chipset MCH: 945GSE + ICH7mBGA. FWH
Memory: 1GB
I/O: 8 x USB 2.02 x COM 1 x LPT 2 x (RS232) 9 pin of COM portsupport 12V or 5V power supply GPIO
Sound card: ALC662 chip6-channel sound cardfront audio pin

CPU (Intel Atom N270) 1.6GHz Core Frequency .533MHz FSB .512KBsL2 cache. 2.5W low TDP

Chipset: Intel® 945GSE Express Chipset MCH: 945GSE + ICH7mBGA. FWH

Memory: 1GB

I/O: 8 x USB 2.02 x COM 1 x LPT 2 x (RS232) 9 pin of COM portsupport 12V or 5V power supply GPIO

Sound card: ALC662 chip6-channel sound cardfront audio pin
