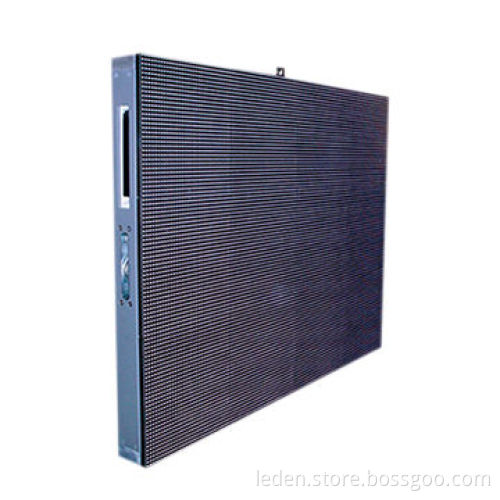

P8 Indoor Full Color LED Display with 36kg weight

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T;L/C,D/P

Product Description

Pixel pitch：7.62mm

Pixel arrangement: one chip with 3 colors(3-in-1)SMD

Module resolution(LxH): 32x16mm

Module size:244x122mm

Cabinet resolution:128x96

Cabinet size(WxHxD):976x732x150mm

Density/㎡: 17222

Weight: 36 KGS

Driving method: 1/8

Refresh rate:>800HZ

Brightness(Typical):1200nit

Max power consumption (W/㎡):650

Average power consumption(W/㎡):220

Control method: synchronous/asynchronous Transmission

View angle: horizontal: 140°, vertical: 140°

Color temperature: 3200K-9300K/Adjustable

Working temperature: Working -20 to +50 deg. C

Working voltage:AC110/220V±15%

Video signal:CV/SDI/S-VIDEO/HDMI/YCBCR/COMPOSIT etc.

Computer system:Windows7/Windows Vista/Windows XP

Life time: 50000-75000 Hours

Protection level:IP31

Out control dots:<0.0001
