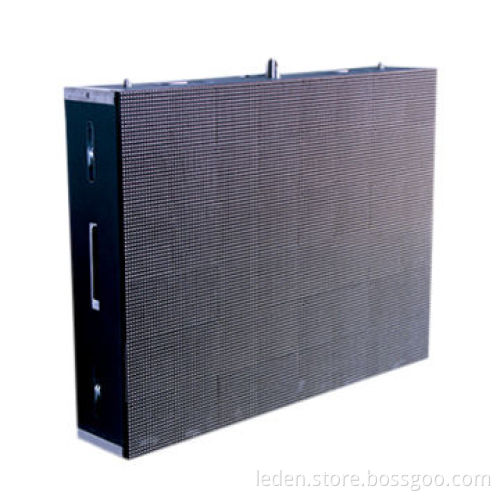

P3 Indoor Full Color LED Display with 120 x 120mm module size

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T;L/C,D/P

Product Description

Pixel pitch：3.75mm

Pixel arrangement: one chip with 3 colors(3-in-1)SMD

Module resolution(LxH): 32x32mm

Module size:120x120mm

Cabinet resolution:160x160

Cabinet size(WxHxD):600x600x150mm

Density/㎡: 71111

Weight: 18 KGS

Driving method: 1/8

Refresh rate:>2000HZ

Brightness(Typical):1500nit

Max power consumption (W/㎡):1200

Average power consumption(W/㎡):400

Control method: synchronous/asynchronous Transmission

View angle: horizontal: 140°, vertical: 140°

Color temperature: 3200K-9300K/Adjustable

Working temperature: store -40°～+85 deg. C/Working -20°～+50 deg. C

Working voltage:AC110/220V±15%

Video signal:S-VIDEO/RGB/RGBHV/YUV/YC/COMPOSITION etc.

Computer system:Windows7/Windows Vista/Windows XP

Life time:50000-75000 Hours

Protection level:IP31

Out control dots:<0.0001
