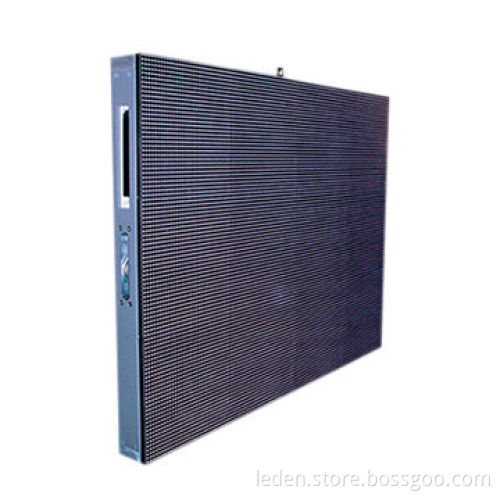

P6 Indoor Full-color LED Display, Made of Die-cast Aluminum

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, D/P

Product Description

Pixel pitch: 6mm

Pixel arrangement: one chip with 3 colors (3-in-1)SMD

Module resolution (LxH): 32x16mm

Module size: 192x96mm

Cabinet resolution: 128x128

Cabinet size (WxHxD): 768x768x150mm

Density/㎡: 27778

Weight: 29kg

Driving method: 1/8

Refresh rate:>800Hz

Brightness (typical): 2,000nit

Maximum power consumption: 1,000W/㎡

Average power consumption: 350W/㎡

Control method: synchronous/asynchronous transmission

Viewing angle:

Color temperature: 3,200-9,300K/adjustable

Working temperature: -20-50°C

Working voltage: AC 110/220V ±15%

Video signal: CV/SDI/S-Video/HDMI/YCBCR/composite

Computer system: Windows 7/Vista/XP

Lifespan: 50,000-75,000 hours

Protection level: IP31

Output control dots: <0.0001

Horizontal: 140°

Vertical: 140°
