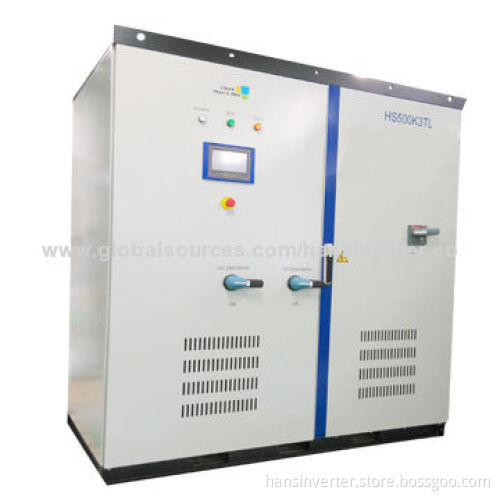

500kW On-grid PV Solar Inverter

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, or IRLC

Product Description

Wide range DC input voltage, 450 to 1,000V DC

MPPT voltage: 450-850V DC

Physical dimension: 1,735*1,980*1,080mm

Weight: 1,400kg

Efficiency: 98.7%

Transformer: no

Rated output power: 500kW

Output voltage: 230-297V AC (adjustable)

Grid frequency: 49.5-50.2Hz

THD: <2%

Power factor: -99 to +99%

Output voltage DC component: <0.5%

Grid structure: TT/TN-S/TN-C

AC output terminal: 4* M10 (copper bar)

IP level: IP21 (indoor)

Operating temperature: -40 to 80 degrees C

Cooling: smart fan

Maximum altitude: 6,000m

MPPT efficiency: >99.9%

Visualized LCD display in Chinese/English/Russia/Spanish

A/B/C three-phase automatically chosen disorderly

Perfect protection

LVRT (Low Voltage Ride Through）

Remote monitoring (RS 485/Ethernet/GPRS optional)

Remote continuously adjustable power factor (-100-100%)

Over temperature linear derating function

Supports multi-parallel connection
