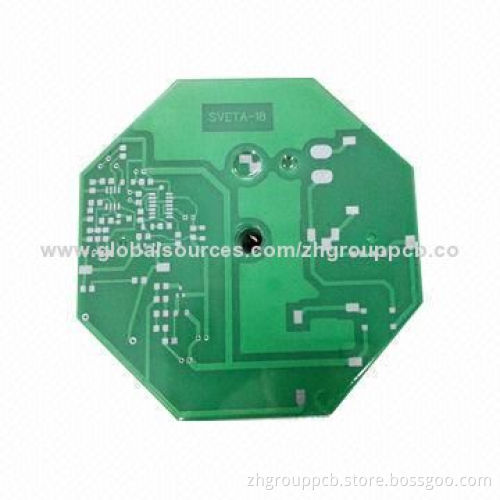

2-layer bare PCB board
  • 2-layer bare PCB board
2-layer bare PCB board

2-layer bare PCB board

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Base material: FR4
  • Copper thickness: 1Oz
  • Board thickness: 1.6mm
  • Min. hole size: 0.1mm
  • Min. line width: 0.13mm
  • Min. line spacing: 0.13mm
  • Surface finishing: HASL
  • Solder resist color: Green
  • PCB technical specifications:
    • Layer range: 1 to 28 layers
    • Material type: FR-4, CEM-1, CEM-3, High TG, FR4 halogen free, rogers
    • Board thicknesses: 0.21mm to 7.0mm
    • Copper thicknesses: 0.5 to 7.0 Oz
    • Copper thickness in hole: >25.0 um (>1mil)
  • Sizes:
    • Max. board size: 23 × 25 (580 × 900mm)
    • Min. drilled hole size: 3mil (0.075mm)
    • Min. line width: 3mil (0.075mm)
    • Min. line spacing: 3mil (0.075mm)
    • Surface finishing: HASL/HASL lead free, HAL, chemical tin, chemical gold, immersion silver/gold, OSP, gold plating
    • Solder mask colors: Green/yellow/black/white/red/blue
  • Tolerance:
    • Shape tolerance: ±0.13
  • Hole tolerance:
    • PTH: ±0.076
    • NPTH: ±0.05
  • Certificates: UL, ISO 9001, ISO 14001
  • Special requirements: Buried and blind vias + controlled impedance + BGA
  • Profiling: Punching, routing, V-cut, beveling
  • Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products
  • Contact us to check out great PCBs and full details, we will reply to you with prices in one working day
  • OEM services provided
  • Factory direct price
  • Layer range: 1 to 28 layers
  • Material type: FR-4, CEM-1, CEM-3, High TG, FR4 halogen free, rogers
  • Board thicknesses: 0.21mm to 7.0mm
  • Copper thicknesses: 0.5 to 7.0 Oz
  • Copper thickness in hole: >25.0 um (>1mil)
  • Max. board size: 23 × 25 (580 × 900mm)
  • Min. drilled hole size: 3mil (0.075mm)
  • Min. line width: 3mil (0.075mm)
  • Min. line spacing: 3mil (0.075mm)
  • Surface finishing: HASL/HASL lead free, HAL, chemical tin, chemical gold, immersion silver/gold, OSP, gold plating
  • Solder mask colors: Green/yellow/black/white/red/blue
  • Shape tolerance: ±0.13
  • PTH: ±0.076
  • NPTH: ±0.05
