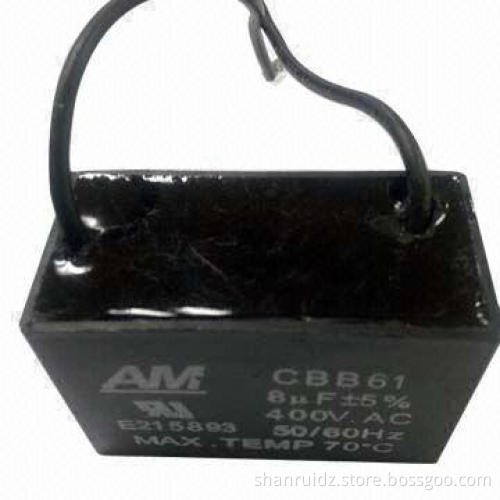

Metallized Polypropylene Film Capacitor for Ceiling Fan, Long Lifespan

Get Latest Price

Payment Type:: TT, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, PayPal

Product Description

Specifications:

Reference standard: GB 3667-1997 (IEC 252)
Climatic category: 40/70/21
Rated voltage: 250 to 500V AC
Capacitance range: 0.1 to 20uf
Capacitance: ±5% (J), ±10% (K), ±20%(M)
Dissipation factor: d0.4% (20°C, 1kHz)
Insulation resistance: e4,000 seconds

Construction:

Non-inductively wound with metallized polypropylene film asdielectric/electrode with ul leads and encapsulated in a plasticcase sealed with epoxy resin coating

Features:

Box type provides the identical outer appearace
Very low-loss at high-frequency, suitable for high-current
High-insulation resistance, long lifespan due to self-healingeffect
Applicable to the start-up and operating of 50Hz (60Hz)single-phase motor
RoHS compliant

Applications:

Fans, stand fans, sewage fans, refrigerators, AC motors

Reference standard: GB 3667-1997 (IEC 252)

Climatic category: 40/70/21

Rated voltage: 250 to 500V AC

Capacitance range: 0.1 to 20uf

Capacitance: ±5% (J), ±10% (K), ±20%(M)

Dissipation factor: d0.4% (20°C, 1kHz)

Insulation resistance: e4,000 seconds

Non-inductively wound with metallized polypropylene film asdielectric/electrode with ul leads and encapsulated in a plasticcase sealed with epoxy resin coating

Box type provides the identical outer appearace

Very low-loss at high-frequency, suitable for high-current

High-insulation resistance, long lifespan due to self-healingeffect

Applicable to the start-up and operating of 50Hz (60Hz)single-phase motor

RoHS compliant

Fans, stand fans, sewage fans, refrigerators, AC motors
