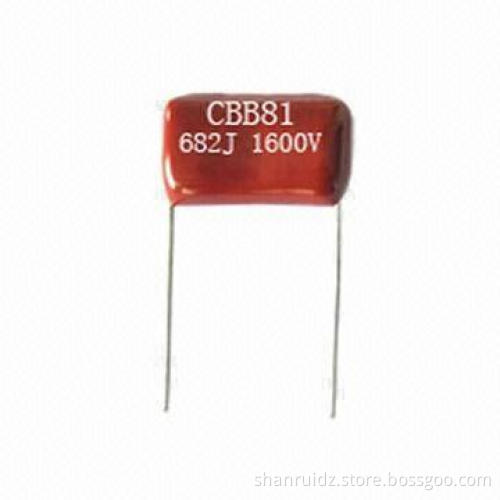

High-voltage Metalized Polypropylene Film Capacitor with Aluminum Foil
  • High-voltage Metalized Polypropylene Film Capacitor with Aluminum Foil
High-voltage Metalized Polypropylene Film Capacitor with Aluminum Foil

High-voltage Metalized Polypropylene Film Capacitor with Aluminum Foil

Get Latest Price
Payment Type:
TT, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, Western Union
Product Description
Product Description
  • Specifications:
    • Climate condition: -40 to 85°C
    • Reference standard: GB (10188) (IEC384 to 13)
    • Rated voltage: 1,000, 1,250, 1,600, 2,000, 2,500, 3,000V
    • Testing voltage: 2.0ur (5 seconds)
    • Capacity: 0.00022 to 0.22uf
    • Dissipation factor: d0.001 (20°C, 10kHz)
    • Capacity tolerance: ±5% (J), ±10% (K)
  • Features:
    • With high-voltage
    • Very low-loss at high-frequency
    • Excellent frequency and temperature characteristics
    • High-insulation resistance, self-healing effect
    • Widely used in AC/DC and pulse circuit
  • Climate condition: -40 to 85°C
  • Reference standard: GB (10188) (IEC384 to 13)
  • Rated voltage: 1,000, 1,250, 1,600, 2,000, 2,500, 3,000V
  • Testing voltage: 2.0ur (5 seconds)
  • Capacity: 0.00022 to 0.22uf
  • Dissipation factor: d0.001 (20°C, 10kHz)
  • Capacity tolerance: ±5% (J), ±10% (K)
  • With high-voltage
  • Very low-loss at high-frequency
  • Excellent frequency and temperature characteristics
  • High-insulation resistance, self-healing effect
  • Widely used in AC/DC and pulse circuit
