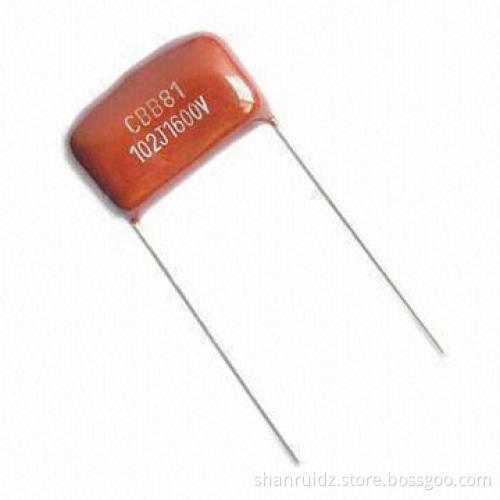

Metalized Polypropylene Film Foil Capacitor with High Voltage
  • Metalized Polypropylene Film Foil Capacitor with High Voltage
  • Metalized Polypropylene Film Foil Capacitor with High Voltage
Metalized Polypropylene Film Foil Capacitor with High Voltage
Metalized Polypropylene Film Foil Capacitor with High Voltage

Metalized Polypropylene Film Foil Capacitor with High Voltage

Get Latest Price
Payment Type:
TT
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT
Product Description
Product Description
  • Structures: non-inductively wound with polypropylene film asthe dielectric and aluminum foil as the electrode with copper-cladsteel leads and epoxy resin coated
  • Applications: widely used in high frequency, DC/AC and pulsecircuits, fit for high impulse and heavy current circuit likemonitor, electronic ballast and energy-saving lamp
  • Features:
    • With good self-healing effect
    • Very low loss at high frequency
    • Series capacitors with high rated voltage
    • High insulation resistance
  • Specifications:
    • Material: polypropylene film
    • Electrode: aluminum foil
    • Climate conditions: -40 to 85°C
    • Rated voltage: 1,250, 1,600, 2,000, 2,500 and 3,000V
    • Capacitance: 0.00022 to 0.22uf
    • Capacitance tolerance: ±5%, ±10%
    • Dissipation factor: d0.001, 10kHz, 20°C
    • Testing voltage: 2.0 UR (5S)
  • With good self-healing effect
  • Very low loss at high frequency
  • Series capacitors with high rated voltage
  • High insulation resistance
  • Material: polypropylene film
  • Electrode: aluminum foil
  • Climate conditions: -40 to 85°C
  • Rated voltage: 1,250, 1,600, 2,000, 2,500 and 3,000V
  • Capacitance: 0.00022 to 0.22uf
  • Capacitance tolerance: ±5%, ±10%
  • Dissipation factor: d0.001, 10kHz, 20°C
  • Testing voltage: 2.0 UR (5S)
