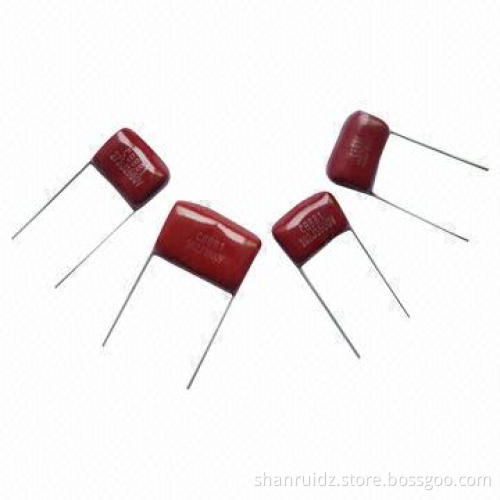

Metallized Polypropylene Film Foil Capacitors with High Voltage and Good Self-healing Effect

Metallized Polypropylene Film Foil Capacitors with High Voltage and Good Self-healing Effect

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Description:

Structures: non-inductively wound with polypropylene film asthe dielectric and aluminum foil as the electrode with copper-cladsteel leads and epoxy resin coated
Using areas: widely used in high-frequency, DC, AC and pulsecircuits, fit for high-impulse and heavy current circuit, monitors,electronic ballasts and energy saving lamps

Features:

With good self-healing effective
Very low-loss at high-frequency
Series capacitors with high-rated voltage
High-insulation resistance
Excellent frequency and temperature characteristics

Specifications:

Material: polypropylene film
Electrode: aluminum foil
Climate condition: -40 to 85°C
Rated voltage: 1,250, 1,600, 2,000, 2,500 and 3,000V
Capacitance: 0.00022 to 0.22uf
Capacitance tolerance: ±5%, ±10%
Dissipation factor: ≤0.001, 10kHz, 20°C
Testing voltage: 2.0UR (5S)
Construction:
- Non-inductively wound with metallized polypropylene film asdielectric and aluminum foil as the electrode with copper-cladsteel leads and epoxy resin coating

Features:

High-corona staring voltage
High-current rating and high-DV/DT
Series electrode construction
Self-healing properties
Excellent frequency and temperature characteristics
Low-lose, small inherent temperature rise,high-reliability
Negative temperature coefficient of capacitance and goodstability

Typical applications:

Widely used in high-frequency and high-pulse, large currentcircuits
Suitable for the high-pulse and high-current loadingcircuit
Buffer, connecting switch, high-voltage power supply device,electronic lighting ballast, energy-saving lamps
Specially designed for horizontal resonance circuits of colorTV set and large screen monitor, suitable for high-pulse and largecurrent loading circuit

Structures: non-inductively wound with polypropylene film asthe dielectric and aluminum foil as the electrode with copper-cladsteel leads and epoxy resin coated

Using areas: widely used in high-frequency, DC, AC and pulsecircuits, fit for high-impulse and heavy current circuit, monitors,electronic ballasts and energy saving lamps

With good self-healing effective

Very low-loss at high-frequency

Series capacitors with high-rated voltage

High-insulation resistance

Excellent frequency and temperature characteristics

Material: polypropylene film

Electrode: aluminum foil

Climate condition: -40 to 85°C

Rated voltage: 1,250, 1,600, 2,000, 2,500 and 3,000V

Capacitance: 0.00022 to 0.22uf

Capacitance tolerance: ±5%, ±10%

Dissipation factor: ≤0.001, 10kHz, 20°C

Testing voltage: 2.0UR (5S)

Construction:

Non-inductively wound with metallized polypropylene film asdielectric and aluminum foil as the electrode with copper-cladsteel leads and epoxy resin coating

Non-inductively wound with metallized polypropylene film asdielectric and aluminum foil as the electrode with copper-cladsteel leads and epoxy resin coating

High-corona staring voltage

High-current rating and high-DV/DT

Series electrode construction

Self-healing properties

Excellent frequency and temperature characteristics

Low-lose, small inherent temperature rise,high-reliability

Negative temperature coefficient of capacitance and goodstability

Widely used in high-frequency and high-pulse, large currentcircuits

Suitable for the high-pulse and high-current loadingcircuit

Buffer, connecting switch, high-voltage power supply device,electronic lighting ballast, energy-saving lamps

Specially designed for horizontal resonance circuits of colorTV set and large screen monitor, suitable for high-pulse and largecurrent loading circuit
