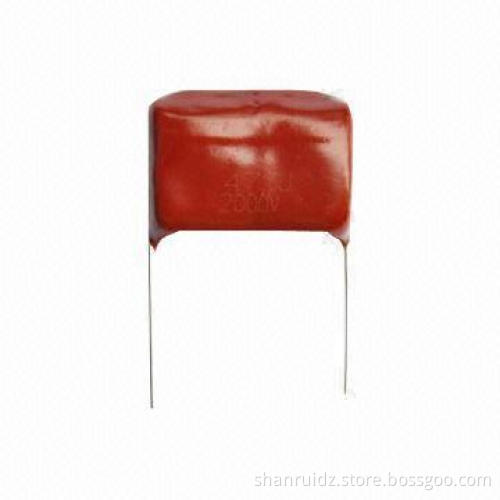

Polypropylene Film Capacitor with Circuit Low-loss, 15mm Pitch and 0.8mm Lead

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Specifications:

Reference standard: GB 10188-88(IEC 60384-13)
Climatic category: 40/85/21
Rated voltage: 1,000, 1,200, 16,00, 2,000 and 3,000V
Capacitance range: 0.0010 to 0.1uf
Capacitance tolerance: ±5% (J), ±10% (K)
Material: polypropylene
Film metalized vacuum evaporated layer and aluminum foil
Enveloped with passive flammability epoxy resin (UL94 V-0)
Packing: bulk
Pitch: 15mm
Lead: 0.8mm
Voltage proof: 2.0UR (5 seconds)
Dissipation factor: less than 0.08% (20°C, 10kHz)
Insulation resistance: more than 30,000m© (CR d0.1uf),more than 3,000 seconds (CR >0.1uf)

Applications:

Widely used in high frequency and high pulse, large currentcircuits
Suitable for the high pulse and high current loadingcircuits
Buffer, connecting switches, high voltage power supply devices,electronic lighting ballasts, energy-saving lamps

Good self-healing effective

Low-loss in circuit

Well voltage-proof features under the high-frequency ACcurrent

Reference standard: GB 10188-88(IEC 60384-13)

Climatic category: 40/85/21

Rated voltage: 1,000, 1,200, 16,00, 2,000 and 3,000V

Capacitance range: 0.0010 to 0.1uf

Capacitance tolerance: ±5% (J), ±10% (K)

Material: polypropylene

Film metalized vacuum evaporated layer and aluminum foil

Enveloped with passive flammability epoxy resin (UL94 V-0)

Packing: bulk
