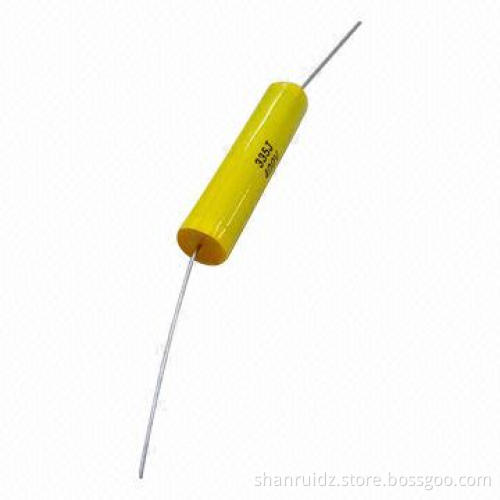

Metalized Polypropylene Film Capacitor in Axial, Used for Welder Machines, Power Amplifier

Metalized Polypropylene Film Capacitor in Axial, Used for Welder Machines, Power Amplifier

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,L/C

Product Description

Construction:

Non-inductively wound with metalized polypropylene film asdielectric/electrode and copper-clad steel leads or flexible cordand outer wrapping with polyester adhesive tape and end sealed withepoxy resin

Specifications:

Climate conditions: -40 to 85/110°C
Rated voltaged: 100, 250, 400, 630V DC
Capacitance range: 0.010 to 33¼F
Capacitance tolerance: ±5% (J), ±10% (K)
Voltage-proof: 1.6UR (5S)
Dissipation factor: d0.0010, 1kHz, 20°C
Temperature: 40 ±2°C
Humidity: 93% RH
Dissipation factor (1kHz): increasing d0.002
Applying voltage: 1.25 x rate voltage

Features:

Small size, lightweight with good self-healing effect
Non-inductive construction, down-leads axially andhorizontally
Very low-loss at high-frequency, suitable for high-current,could bear the high-current imp-active
Have well voltage-proof features under the frequency ACcurrent
High-insulation resistance, long life due to self-healingeffect
Good capacitance stability

Using areas:

High-frequency, DC, AC and impulsion high-currentconditions
In heavy current such as filtering and impulse, such as poweramplifiers and welder machines and more
Would be used in the all CBB21 complaint conditions

Packing details:

Bulk package (loose in bag), paper box, the sizes of our boxesare 42 x 32 x 28, 54 x 36 x 28mm or 56 x 36 x 29mm, we often pack5, 10, 20K pieces (according to the dimension of the products ineach box)
Customized designs are available

Non-inductively wound with metalized polypropylene film asdielectric/electrode and copper-clad steel leads or flexible cordand outer wrapping with polyester adhesive tape and end sealed withepoxy resin

Climate conditions: -40 to 85/110°C

Rated voltaged: 100, 250, 400, 630V DC

Capacitance range: 0.010 to 33¼F

Capacitance tolerance: ±5% (J), ±10% (K)

Voltage-proof: 1.6UR (5S)

Dissipation factor: d0.0010, 1kHz, 20°C

Temperature: 40 ±2°C

Humidity: 93% RH

Dissipation factor (1kHz): increasing d0.002

Applying voltage: 1.25 x rate voltage

Small size, lightweight with good self-healing effect

Non-inductive construction, down-leads axially andhorizontally

Very low-loss at high-frequency, suitable for high-current,could bear the high-current imp-active

Have well voltage-proof features under the frequency ACcurrent

High-insulation resistance, long life due to self-healingeffect

Good capacitance stability

High-frequency, DC, AC and impulsion high-currentconditions

In heavy current such as filtering and impulse, such as poweramplifiers and welder machines and more

Would be used in the all CBB21 complaint conditions

Bulk package (loose in bag), paper box, the sizes of our boxesare 42 x 32 x 28, 54 x 36 x 28mm or 56 x 36 x 29mm, we often pack5, 10, 20K pieces (according to the dimension of the products ineach box)

Customized designs are available
