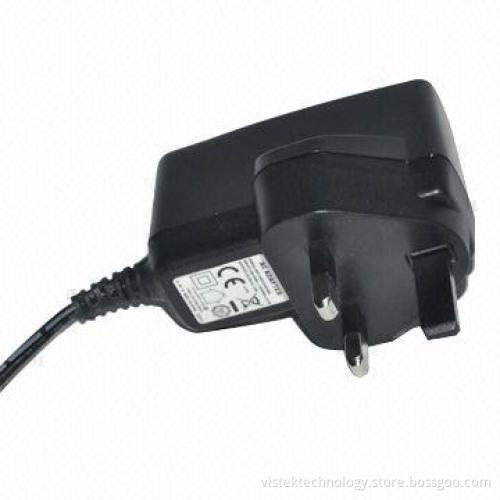

Vistek UK Battery Charger, 120-180mV Ripple and Noise, Used for Cellphones, MP3/4

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Input voltage range: 90 - 264V AC

Input frequency range: 47 - 63Hz

Input current: 0.3A (maximum)

Inrush current: 60A at least 230V AC, cold star, 25°C

Efficiency level: V

Ripple and noise: 120-180mV

Altitude: 2,000m

Safety parameters:

Operating temperature: 0-40°C

Abnormal sound: 40dB (maximum), no sound room

Leakage current: <0.25mA

Insulation resistance: 50M Ohms (minimum)

Dielectric withstanding strength: 3,000V AC, 60 seconds

Reliability:

MTBF: 50,000 hours

Electro-analysis capacitor: >12,000 hours

Thermal decorating: <80%

Drop: 1,000mm to concrete

Features:

Light, extra, human mechanics design compact

High-efficiency green power, full complies with CEC

Level V, MEPS V EUP2010

Extra safe protection function design with respective safetystandards

Suitable for an extremely wide range of applications

Such as: mobile phones/PoS/set-top boxes/ADSL/hard diskdrive/AV products/household applications and more
