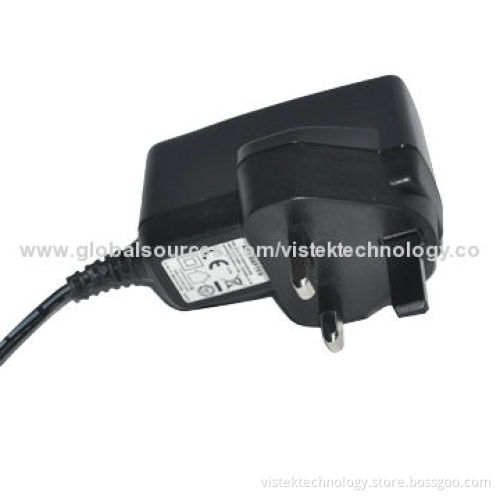

Vistek 10W UK Wall Mount Battery Charger, Level V, Low-ripple MTBF 50,000 Hours
  • Vistek 10W UK Wall Mount Battery Charger, Level V, Low-ripple MTBF 50,000 Hours
Vistek 10W UK Wall Mount Battery Charger, Level V, Low-ripple MTBF 50,000 Hours

Vistek 10W UK Wall Mount Battery Charger, Level V, Low-ripple MTBF 50,000 Hours

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Input voltage range: 90 to 264V AC
    • Input frequency range: 47 to 63Hz
    • Input current: 0.3A (maximum)
    • Inrush current: 60A at least 230V AC, cold star, 25°C
    • Efficiency level: V
    • Ripple and noise: 120 to 180mV
    • Altitude: 2,000m
  • Safety parameters:
    • Operating temperature: 0 to 40°C
    • Abnormal sound: 40dB (maximum), no sound room
    • Leakage current: ≤0.25mA
    • Insulation resistance: 50M Ω (minimum)
    • Dielectric withstanding strength: 3,000V AC, 60 seconds
  • Reliability:
    • MTBF: 50,000 hours
    • Electroanalysis capacitor: ≥12,000 hours
    • Thermal derating: <80%
    • Drop: 1,000mm to concrete
  • Features:
    • Light, extra, human mechanics design compact
    • High-efficiency green power, full complies with CEC
    • Level V, MEPS V EUP 2010
    • Ripple and noise: <150mV
    • Protection: OCP OVP SCP
    • Extra safe protection function design with respective safety standards
    • Suitable for an extremely wide range of applications
    • Such as: mobile phones/PoS/set-top boxes/ADSL/hard disk drive/AV products/household applications and more
  • Input voltage range: 90 to 264V AC
  • Input frequency range: 47 to 63Hz
  • Input current: 0.3A (maximum)
  • Inrush current: 60A at least 230V AC, cold star, 25°C
  • Efficiency level: V
  • Ripple and noise: 120 to 180mV
  • Altitude: 2,000m
  • Operating temperature: 0 to 40°C
  • Abnormal sound: 40dB (maximum), no sound room
  • Leakage current: ≤0.25mA
  • Insulation resistance: 50M Ω (minimum)
  • Dielectric withstanding strength: 3,000V AC, 60 seconds
  • MTBF: 50,000 hours
  • Electroanalysis capacitor: ≥12,000 hours
  • Thermal derating: <80%
  • Drop: 1,000mm to concrete
  • Light, extra, human mechanics design compact
  • High-efficiency green power, full complies with CEC
  • Level V, MEPS V EUP 2010
  • Ripple and noise: <150mV
  • Protection: OCP OVP SCP
  • Extra safe protection function design with respective safety standards
  • Suitable for an extremely wide range of applications
  • Such as: mobile phones/PoS/set-top boxes/ADSL/hard disk drive/AV products/household applications and more
