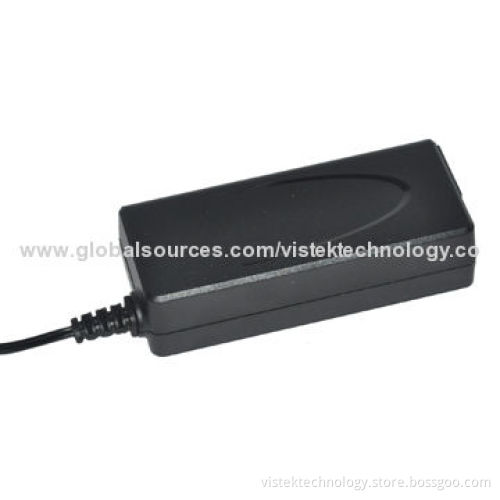

36W Universal Laptop Adapter, V Efficiency Level, 100-200mV Ripple and Noise

36W Universal Laptop Adapter, V Efficiency Level, 100-200mV Ripple and Noise

Get Latest Price

Payment Type:: T/T, Western Union, PayPal or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal or L/C

Product Description

Input voltage range: 90-264V AC

Input frequency range: 47-63Hz

Input current: 1.0A (maximum)

Inrush current: 60A at least 230V AC, cold star, 25℃

Efficiency level: V

Ripple and noise range: 100-200mV

Altitude: 2,000m

Safety parameters:

Operating temperature: 0-40℃
Abnormal sound: 40dB maximum, no sound room
Leakage current: <0.25mA
Insulation resistance: 50M Ohms (minimum)
Dielectric withstanding strength: 3,000V AC, 60 seconds

Reliability:

MTBF: 50,000 hours
Electro-analysis capacitor: >12,000 hours
Thermal de-rating: <80%
Drop: 1,000mm to concrete

Features:

Light, extra, human mechanics design compact
High-efficiency green power, full complies with CEC
Level V, MEPS V EUP2010
Extra safe protection function design with respective safety approvals

Suitable for an extremely wide range of application such as mobile phones/POS/set-top-boxes/ADSL/hard disk drives/AV product/household applications and more

Operating temperature: 0-40℃

Abnormal sound: 40dB maximum, no sound room

Leakage current: <0.25mA

Insulation resistance: 50M Ohms (minimum)

Dielectric withstanding strength: 3,000V AC, 60 seconds

MTBF: 50,000 hours

Electro-analysis capacitor: >12,000 hours

Thermal de-rating: <80%

Drop: 1,000mm to concrete

Light, extra, human mechanics design compact

High-efficiency green power, full complies with CEC

Level V, MEPS V EUP2010

Extra safe protection function design with respective safety approvals
