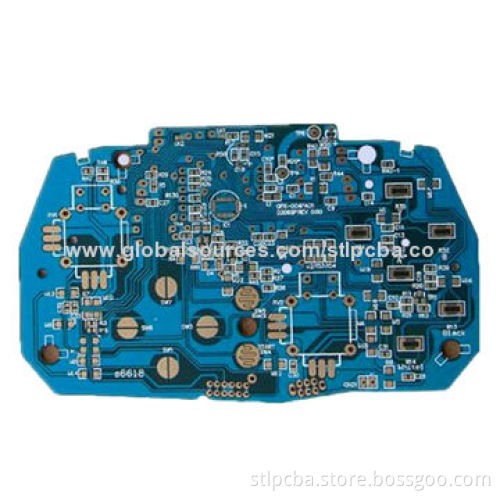

High Frequency PCB Manufacturer, FR4 Material, Reliable Quality and Competitive Price
  • High Frequency PCB Manufacturer, FR4 Material, Reliable Quality and Competitive Price
High Frequency PCB Manufacturer, FR4 Material, Reliable Quality and Competitive Price

High Frequency PCB Manufacturer, FR4 Material, Reliable Quality and Competitive Price

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Quick details:
    • Place of origin: Guangdong China (mainland)
    • Brand name: STL
    • Model number: STL-F-BG-HF05
    • Base material: FR4
    • Copper thickness: 1oz
    • Board thickness: 1.6mm
    • Minimum hole size: 0.2mm
    • Minimum line width: 0.1mm
    • Minimum line spacing: 0.1mm
    • Surface finishing: HASL lead-free
    • Solder mask colors: green, yellow, black, white, red and blue
    • Silkscreen colors: white, red, black, yellow, blue and green
    • OEM orders are welcome
  • Packaging details:
    • Inner packaging
    • Vacuum packaging: plastic bag
    • Outer packaging: standard carton packaging
    • Delivery detail: 6-10 days
  • PCB capabilities:
    • Materials: FR4, CEM-3, CM-1, FR-1, Teflon, aluminum, rogers and high Tg
    • Layers: 1-12
    • Maximum panel size: 540 x 520mm
    • Thickness finished: 0.25-5.0mm
    • Copper thicknesses: 0.5-5.0oz
    • Minimum line width/spacing: 0.10/0.10mm
    • Minimum hole/PAD: 0.1/0.4mm
    • Surface finished: lead-free HASL, immersion gold/tin/silver, OSP, gold finger plating, selective immersion gold, gold plating
    • Controlled impedance: ±10% (minimum ±7Ω)
    • Outline tolerance CNC routing: ±0.1mm
    • Punching: ±0.15mm
    • Layer to layer excursion: ±0.1mm
    • Min legend: 0.15mm
    • Aspect ratio: 10:01
    • Anti-flaming level: 94V-0
    • Electric strength: >1.3kV/mm
    • Peel strength: 1.4N/mm
  • Place of origin: Guangdong China (mainland)
  • Brand name: STL
  • Model number: STL-F-BG-HF05
  • Base material: FR4
  • Copper thickness: 1oz
  • Board thickness: 1.6mm
  • Minimum hole size: 0.2mm
  • Minimum line width: 0.1mm
  • Minimum line spacing: 0.1mm
  • Surface finishing: HASL lead-free
  • Solder mask colors: green, yellow, black, white, red and blue
  • Silkscreen colors: white, red, black, yellow, blue and green
  • OEM orders are welcome
  • Inner packaging
  • Vacuum packaging: plastic bag
  • Outer packaging: standard carton packaging
  • Delivery detail: 6-10 days
  • Materials: FR4, CEM-3, CM-1, FR-1, Teflon, aluminum, rogers and high Tg
  • Layers: 1-12
  • Maximum panel size: 540 x 520mm
  • Thickness finished: 0.25-5.0mm
  • Copper thicknesses: 0.5-5.0oz
  • Minimum line width/spacing: 0.10/0.10mm
  • Minimum hole/PAD: 0.1/0.4mm
  • Surface finished: lead-free HASL, immersion gold/tin/silver, OSP, gold finger plating, selective immersion gold, gold plating
  • Controlled impedance: ±10% (minimum ±7Ω)
  • Outline tolerance CNC routing: ±0.1mm
  • Punching: ±0.15mm
  • Layer to layer excursion: ±0.1mm
  • Min legend: 0.15mm
  • Aspect ratio: 10:01
  • Anti-flaming level: 94V-0
  • Electric strength: >1.3kV/mm
  • Peel strength: 1.4N/mm
