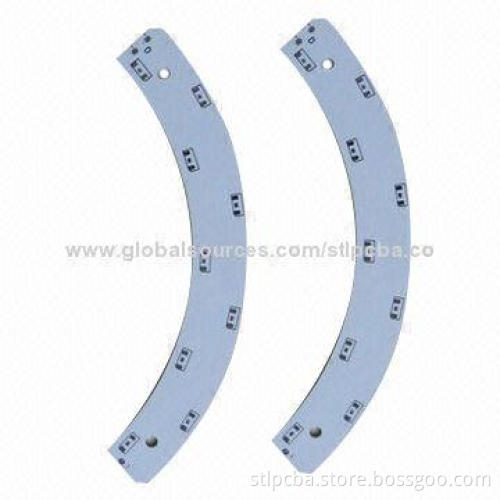

PCB, Aluminum LED PCB for LED SMD, one stop services

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Quick details

Packaging & Delivery

Place of Origin: China (Mainland)

Brand name: STL-BG

Model number: Alu03

Base material: aluminum

Copper thickness: 1 oz

Board thickness: 0.5-4.0mm

Min. hole size: 0.3mm

Min. line width: 0.1mm

Min. line spacing: 0.1mm

Surface finishing: Lead-free HASL

Packaging detail: do as customer requested.

Delivery detail: 7-12days

Materials FR-4, CEM-3, Teflon, Aluminum, Rogers, High Tg

Layer: 1-12 layers

Maximum panel size: 540 x 520mm

Thickness finished: 0.25-5.0 mm

Copper thickness: 0.5-5.0oz

Minimum line width/spacing: 0.10mm/0.10mm

Minimum hole/PAD 0.1mm/PAD: 0.4mm

Surface finished: Lead-free HASL, immersion gold/tin/silver, OSP, gold finger plating, selective immersion gold, gold plating
