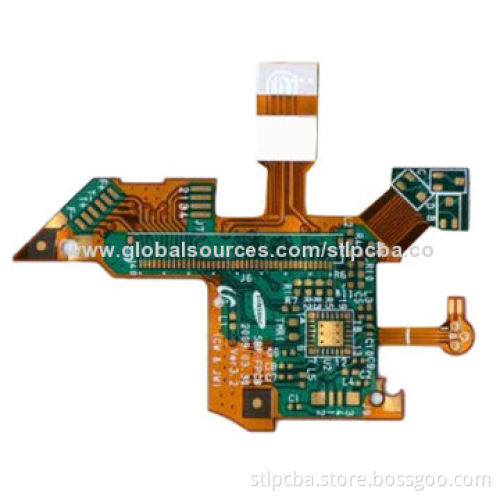

Flexible PCB circuit board, 0.5-5.0oz copper thickness
  • Flexible PCB circuit board, 0.5-5.0oz copper thickness
Flexible PCB circuit board, 0.5-5.0oz copper thickness

Flexible PCB circuit board, 0.5-5.0oz copper thickness

Get Latest Price
Payment Type:
T/T in Advance
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance
Product Description
Product Description
  • Details:
    • Number of layers: 2
    • Base materials: copper clad laminate and polyimide
    • Copper thickness: 1oz
    • Board thickness: 1.6mm
    • Minimum hole size: 0.2mm
    • Minimum line width: 0.2mm
    • Minimum line spacing: 0.2mm
    • Solder mask color: yellow
    • Surface finish: ENIG
  • Packing and delivery:
    • Packing: anti-static package with carton box
    • Delivery time: 6 to 10 days
  • PCB capabilities:
    • Materials: FR4, CEM-3, CM-1, FR-1, Teflon, aluminum, rogers and high Tg
    • Layers: 1-12
    • Maximum panel size: 540 x 520mm
    • Thickness finish: 0.25-5.0mm
    • Copper thickness: 0.5-5.0oz
    • Minimum line width/spacing: 0.10/0.10mm
    • Minimum hole/PAD: 0.1/0.4mm
    • Surface finish: lead-free HASL, immersion gold/tin/silver, OSP, gold finger plating, selective immersion gold and gold plating
    • Controlled impedance: ±10% (minimum ±7Ω)
    • Outline tolerance CNC routing: ±0.1mm
    • Punching: ±0.15mm
    • Layer to layer excursion: ±0.1mm
    • Minimum legend: 0.15mm
    • Aspect ratio: 10:01
    • Anti-flaming level: 94V-0
    • Electric strength: >1.3kV/mm
    • Peel strength: 1.4N/mm
  • Number of layers: 2
  • Base materials: copper clad laminate and polyimide
  • Copper thickness: 1oz
  • Board thickness: 1.6mm
  • Minimum hole size: 0.2mm
  • Minimum line width: 0.2mm
  • Minimum line spacing: 0.2mm
  • Solder mask color: yellow
  • Surface finish: ENIG
  • Packing: anti-static package with carton box
  • Delivery time: 6 to 10 days
  • Materials: FR4, CEM-3, CM-1, FR-1, Teflon, aluminum, rogers and high Tg
  • Layers: 1-12
  • Maximum panel size: 540 x 520mm
  • Thickness finish: 0.25-5.0mm
  • Copper thickness: 0.5-5.0oz
  • Minimum line width/spacing: 0.10/0.10mm
  • Minimum hole/PAD: 0.1/0.4mm
  • Surface finish: lead-free HASL, immersion gold/tin/silver, OSP, gold finger plating, selective immersion gold and gold plating
  • Controlled impedance: ±10% (minimum ±7Ω)
  • Outline tolerance CNC routing: ±0.1mm
  • Punching: ±0.15mm
  • Layer to layer excursion: ±0.1mm
  • Minimum legend: 0.15mm
  • Aspect ratio: 10:01
  • Anti-flaming level: 94V-0
  • Electric strength: >1.3kV/mm
  • Peel strength: 1.4N/mm
