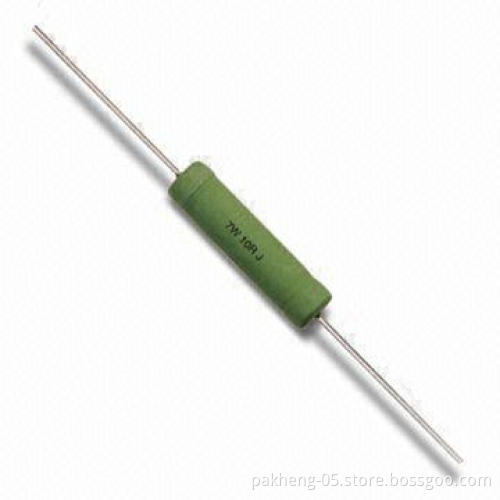

Wirewound Non-inductive Fixed Resistor with Good Heat-durability and Low Noise

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Good heat-durability, low temperature coefficient, low noise,high overload power

Operating ambient temperature: -55 to + 275°C

Surface is non-flammable, the 1/4 to 6W coating is gray whiteand indicate the resistance value by color ring, indicate a greenring at the behind of the precision color ring, the 7W or over willindicate the resistance value by lettering and coating isgreen

Resistance tolerance: ±1%, ±2%, ±5%, and±10%

Power: 1/4, 1/2, 1, 2, 3, 4, 5, 6, 7, 8 and 10W

Range: 0R01 to 100R
