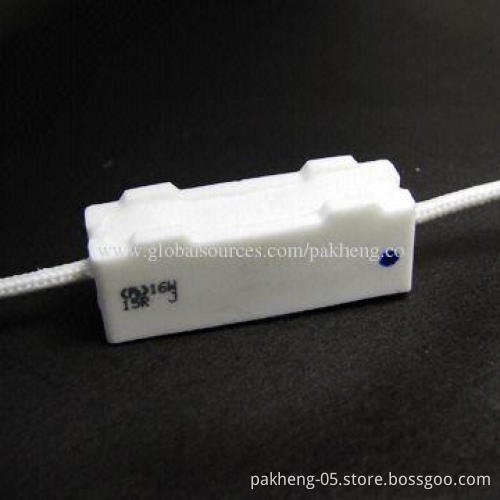

Cement resistors (RX/BRX/HRX):

Good heat-durability, low temperature coefficient, low noise, high load power, high insulating capacity
Operating ambient temperature: -55 to 275℃
Resistance tolerance: ± 1%, ± 2%, ± 5%, ± 10%

Forming type and power:

Good heat-durability, low temperature coefficient, low noise, high load power, high insulating capacity

Operating ambient temperature: -55 to 275℃

Resistance tolerance: ± 1%, ± 2%, ± 5%, ± 10%

SQP: 1 to 11, 15, 17, 20, 25W

SBH: 5 to 11, 15, 17, 20, 25W

SQM: 1 to 11, 15, 20W

SQS: 5, 7, 10, 15, 20, 25W

SQO: 4, 5, 6, 7, 8W

SQZ: 3 to 11, 15, 17, 20, 25W

SQH: 3 to 11, 15, 17, 20, 25, 30, 40, 50, 100W

SHG: 10, 11, 15, 20, 25, 30, 40W

Z4-16, Z5-16: 4, 10W

ZC-11: 5W

M450: 80W

Tolerance: ± 1%, ± 2%, ± 5%, ± 10%

Range: 0R01-100K
