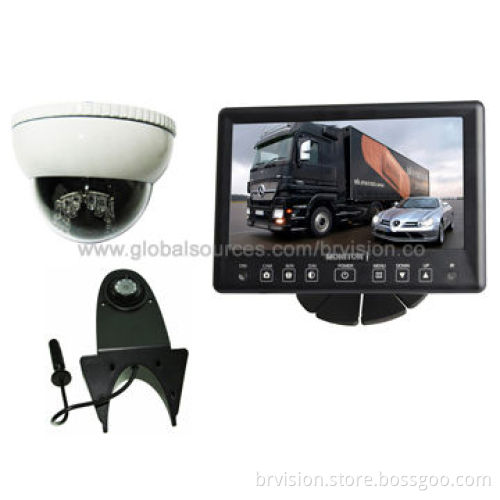

Touch Screen/High-quality 2/4-channel 7-inch Monitor Rear-view Camera, Special Housing

Touch Screen/High-quality 2/4-channel 7-inch Monitor Rear-view Camera, Special Housing

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Monitor:
- 7.0-inch TFT LCD monitor: 16:9
- PAL and NTSC auto-switching
- Wide viewing angle (CR: >10):
  - Up/ down: 15/40°
  - Left/right: 65/65°
- Brightness: 450cd/m²
- Resolution: 800 x RGB x 480 pixels
- Mirror/normal switch
- Menu is workable even if under mirror image condition
- Day/night sensor for automatic adjustment
- Built-in speaker
- Color system: PAL/NTSC (auto)
- IP rate: IP67
- With soon response (at 25°C): 20 minutes
- Power requirement: 12/24V DC
- Power consumption: d5W
- Operating temperature: -20 to 70°C
- Storage temperature: -30 to 80°C
Dome camera:
- Image sensor: 1/3-inch colored CCD
- Resolution: 420TVL
- Waterproof rate: IP65
- Electronic shutter speed: 1/60-1/5,000 seconds
- Lens: 2.8/2.1mm
- Wide angle: 120°
- Power supply: 12V DC (±10%)
- Night-vision function
Camera:
- Type high-resolution backup camera
- Image sensor: 1/3-inch CCD
- TV system NTSC/PAL (optional)
Effective pixels:
- NTSC: 510 x 492
- PAL: 500 x 582
Horizontal resolution: 420TVL
Lens angle: 120°
Minimum illumination: 0 Lux (LED-on)
IR LED: 10 pieces for night-vision distance of 45ft
Audio function
Operating temperature: -20 to 70°C, RH 95% (maximum)
Lens: f = 2.5/1.7mm
Dimensions (L x W x H): 70 x 50 x 40mm
Waterproof rate: IP68
Shell material: aluminum alloy
Net weight: 350g

Monitor:

7.0-inch TFT LCD monitor: 16:9
PAL and NTSC auto-switching
Wide viewing angle (CR: >10):
- Up/ down: 15/40°
- Left/right: 65/65°
Brightness: 450cd/m²
Resolution: 800 x RGB x 480 pixels
Mirror/normal switch
Menu is workable even if under mirror image condition
Day/night sensor for automatic adjustment
Built-in speaker
Color system: PAL/NTSC (auto)
IP rate: IP67
With soon response (at 25°C): 20 minutes
Power requirement: 12/24V DC
Power consumption: d5W
Operating temperature: -20 to 70°C
Storage temperature: -30 to 80°C

Dome camera:

Image sensor: 1/3-inch colored CCD
Resolution: 420TVL
Waterproof rate: IP65
Electronic shutter speed: 1/60-1/5,000 seconds
Lens: 2.8/2.1mm
Wide angle: 120°
Power supply: 12V DC (±10%)
Night-vision function

Camera:

Type high-resolution backup camera
Image sensor: 1/3-inch CCD
TV system NTSC/PAL (optional)

Effective pixels:

NTSC: 510 x 492
PAL: 500 x 582

Horizontal resolution: 420TVL

Lens angle: 120°

Minimum illumination: 0 Lux (LED-on)

IR LED: 10 pieces for night-vision distance of 45ft

Audio function

Operating temperature: -20 to 70°C, RH 95% (maximum)

Lens: f = 2.5/1.7mm

Dimensions (L x W x H): 70 x 50 x 40mm

Waterproof rate: IP68

Shell material: aluminum alloy

Net weight: 350g

7.0-inch TFT LCD monitor: 16:9

PAL and NTSC auto-switching

Wide viewing angle (CR: >10):

Up/ down: 15/40°
Left/right: 65/65°

Brightness: 450cd/m²

Resolution: 800 x RGB x 480 pixels

Mirror/normal switch

Menu is workable even if under mirror image condition

Day/night sensor for automatic adjustment

Built-in speaker

Color system: PAL/NTSC (auto)

IP rate: IP67

With soon response (at 25°C): 20 minutes

Power requirement: 12/24V DC

Power consumption: d5W

Operating temperature: -20 to 70°C

Storage temperature: -30 to 80°C

Up/ down: 15/40°

Left/right: 65/65°

Image sensor: 1/3-inch colored CCD

Resolution: 420TVL

Waterproof rate: IP65

Electronic shutter speed: 1/60-1/5,000 seconds

Lens: 2.8/2.1mm

Wide angle: 120°

Power supply: 12V DC (±10%)

Night-vision function

Type high-resolution backup camera

Image sensor: 1/3-inch CCD

TV system NTSC/PAL (optional)

NTSC: 510 x 492

PAL: 500 x 582
