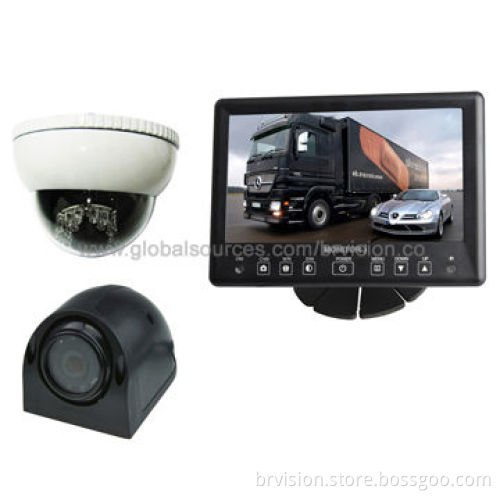

Colored CCD and Vandal Proof Camera with IP67 Waterproof Monitor for Car Rearview System

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Monitor specifications:

7.0-inch TFT LCD monitor: 16:9
PAL and NTSC auto switching
Wide view angle (CR>10):
- Up/down: 15/40°
- Left/right: 65/65°
Brightness: 450cd/m²
Resolution: 800 x RGB x 480
Mirror/normal switch
Menu is workable even if under mirror image condition
Day/night sensor for automatic adjustment
Built-in speaker
Color system: PAL/NTSC (auto)
IP rating: IP67
With soon response (ms) (at 25°C): 20
Power requirement: 12/24V DC
Power consumption: d5W
Operating temperature: -20 to +70°C
Storage temperature: -30 to +80°C

Dome camera specifications:

Image sensor: 1/3-inch color CCD
Resolution: 420TVL
Waterproof rate: IP65
Electronics shutter: 1/60-1/5000s
Lens: 2.8mm/2.1mm
Wide angle: 120°
Power: 12V DC (±10%)
Night vision function

Camera specifications:

Type: high-resolution backup camera
Image sensor: 1/3-inch CCD
TV system NTSC/PAL (optional)
Effective pixels:
- N: 510 x 492 pixels
- P: 500 x 582 pixels
Horizontal resolution: 420TVL
Lens angle: 120°
Minimum illumination: 0 lux (LED on)
IR LED 10 pieces for night vision distance: 45 feet
Audio function
Operating temperature: -20 to 70°C, RH 95% (maximum)
Lens: f: 2.5/1.7mm
Power supply: 12V DC
Size (L x W x H): 70 x 50 x 40mm
Net weight: 350g
Waterproof rate: IP68
Shell material: aluminum alloy

7.0-inch TFT LCD monitor: 16:9

PAL and NTSC auto switching

Wide view angle (CR>10):

Up/down: 15/40°
Left/right: 65/65°

Brightness: 450cd/m²

Resolution: 800 x RGB x 480

Mirror/normal switch

Menu is workable even if under mirror image condition

Day/night sensor for automatic adjustment

Built-in speaker

Color system: PAL/NTSC (auto)

IP rating: IP67

With soon response (ms) (at 25°C): 20

Power requirement: 12/24V DC

Power consumption: d5W

Operating temperature: -20 to +70°C

Storage temperature: -30 to +80°C

Up/down: 15/40°

Left/right: 65/65°

Image sensor: 1/3-inch color CCD

Resolution: 420TVL

Waterproof rate: IP65

Electronics shutter: 1/60-1/5000s

Lens: 2.8mm/2.1mm

Wide angle: 120°

Power: 12V DC (±10%)

Night vision function

Type: high-resolution backup camera

Image sensor: 1/3-inch CCD

TV system NTSC/PAL (optional)

Effective pixels:

N: 510 x 492 pixels
P: 500 x 582 pixels

Horizontal resolution: 420TVL

Lens angle: 120°

Minimum illumination: 0 lux (LED on)

IR LED 10 pieces for night vision distance: 45 feet

Audio function

Operating temperature: -20 to 70°C, RH 95% (maximum)

Lens: f: 2.5/1.7mm

Power supply: 12V DC

Size (L x W x H): 70 x 50 x 40mm

Net weight: 350g

Waterproof rate: IP68

Shell material: aluminum alloy

N: 510 x 492 pixels

P: 500 x 582 pixels
