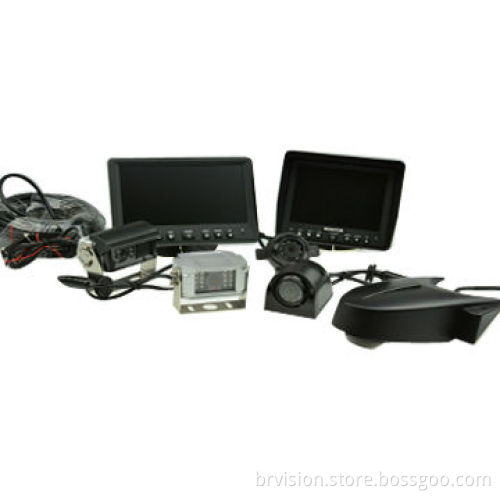

7-inch Quad Rear-view System, Splitter Monitor, Waterproof Camera

7-inch Quad Rear-view System, Splitter Monitor, Waterproof Camera

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Built-in quad control box function
Rear-view monitor supports four camera input
With remote controller
Single/split/quad viewing selectable
7 languages OSD display
PAL/NTSC optional, mirror/normal image (optional)
Automatically turn-on when the reversing gear is engaged
Trigger priority: CAM 1>, CAM 2>, CAM 3>, CAM 4
With high/low-voltage protection and short-circuit protection
IR rear-view camera12 to 24V DC for heavy duty

Monitor specifications:

7-inch TFT LCD monitor, 16:9
Wide viewing angle (CRI: >10): (up/down/left/right): 40/40/60/60°
Resolution: 400 RGB x 234 dots
Color systems: PAL/NTSC (selectable)
Power requirement: 12/24V DC
Power consumption: 5W
Operating temperatures: -20 to 70°C
Storage temperatures: -30 to 80°C
Dimensions (L x W x D): 183 x 125 x 38mm

Camera specifications:

High-resolution backup camera
Image sensor: 1/3-inch CCD
TV systems: NTSC/PAL (optional)
Horizontal resolution: 420TVL
Lens angle: 120 degrees
Minimum illumination: 0 Lux (LED on)
IR LED: 10 pieces
Night vision distance: 45ft
Operating temperatures: -20 to 70°C, 95% RH
Lens: f = 2.5/1.7mm
Power supply: 12V DC
Size (L x W x H): 70 x 50 x 40mm
Waterproof rate: IP68
Shell material: aluminum alloy

Built-in quad control box function

Rear-view monitor supports four camera input

With remote controller

Single/split/quad viewing selectable

7 languages OSD display

PAL/NTSC optional, mirror/normal image (optional)

Automatically turn-on when the reversing gear is engaged

Trigger priority: CAM 1>, CAM 2>, CAM 3>, CAM 4

With high/low-voltage protection and short-circuit protection

IR rear-view camera12 to 24V DC for heavy duty

7-inch TFT LCD monitor, 16:9

Wide viewing angle (CRI: >10): (up/down/left/right): 40/40/60/60°

Resolution: 400 RGB x 234 dots

Color systems: PAL/NTSC (selectable)

Power requirement: 12/24V DC

Power consumption: 5W

Operating temperatures: -20 to 70°C

Storage temperatures: -30 to 80°C

Dimensions (L x W x D): 183 x 125 x 38mm

High-resolution backup camera

Image sensor: 1/3-inch CCD

TV systems: NTSC/PAL (optional)

Horizontal resolution: 420TVL

Lens angle: 120 degrees

Minimum illumination: 0 Lux (LED on)

IR LED: 10 pieces

Night vision distance: 45ft

Operating temperatures: -20 to 70°C, 95% RH

Lens: f = 2.5/1.7mm

Power supply: 12V DC

Size (L x W x H): 70 x 50 x 40mm

Waterproof rate: IP68

Shell material: aluminum alloy
