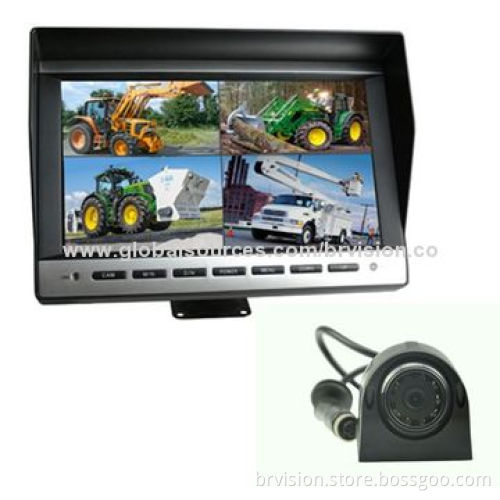

10.1-inch monitor with remote controller & side camera for heavy duty vehicle, wide angle degree

10.1-inch monitor with remote controller & side camera for heavy duty vehicle, wide angle degree

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Key features:

Built-in quad control box function
Rear view monitor support four camera inputs
With remote controller
Single view/split view/Quad view selectable
7 languages OSD display
PAL/NTSC optional, mirror/normal image optional
Automatically turn on when the reversing gear is engaged
Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
With high-low voltage protection and short circuit protection
IR rearview camera
DC 12-24V for heavy duty

Monitor specifications:

10.1 inch TFT LCD monitor ,16:9
Wide view angle(CR>10): (up/down/left/right): 70/80/80/80
Resolution: WSVGA 1024 horizontal x 600 vertical pixel
Brightness: 3400cd/m2
Color system: PAL/NTSC(selectable)
Power requirement: 12/24V DC
Power consumption: 5W
Operating temperature: -20° to +70°
Storage temperature: -30° to +80°
Dimension: 261 (L) x 177 (W) x 70 (D)

Camera specification:

Image sensor: 1/4" Sharp/Sony Color CCD
TV system: N TSC/ PAL
IP rating: IP68
Vibration Rate: 10G
Night vision function: 9pcs LED lamp
Effective pixels N: 510×492 pixels P: 500×582 pixels
Horizontal resolution: 420TVL
Video output: 1.0vp- p,75Ohm
Built-in lens:2.8mm
Wide angle: 120°
Power supply: 12V DC(+/-10%)
Power consumption: <3W
Silver aluminum housing
Operating temp: - 20C° t o +70C°
Storage temp: - 30C° t o +80C°

Built-in quad control box function

Rear view monitor support four camera inputs

With remote controller

Single view/split view/Quad view selectable

7 languages OSD display

PAL/NTSC optional, mirror/normal image optional

Automatically turn on when the reversing gear is engaged

Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4

With high-low voltage protection and short circuit protection

IR rearview camera

DC 12-24V for heavy duty

10.1 inch TFT LCD monitor ,16:9

Wide view angle(CR>10): (up/down/left/right): 70/80/80/80

Resolution: WSVGA 1024 horizontal x 600 vertical pixel

Brightness: 3400cd/m2

Color system: PAL/NTSC(selectable)

Power requirement: 12/24V DC

Power consumption: 5W

Operating temperature: -20° to +70°

Storage temperature: -30° to +80°

Dimension: 261 (L) x 177 (W) x 70 (D)

Image sensor: 1/4" Sharp/Sony Color CCD

TV system: N TSC/ PAL

IP rating: IP68

Vibration Rate: 10G

Night vision function: 9pcs LED lamp

Effective pixels N: 510×492 pixels P: 500×582 pixels

Horizontal resolution: 420TVL

Video output: 1.0vp- p,75Ohm

Built-in lens:2.8mm

Wide angle: 120°

Power supply: 12V DC(+/-10%)

Power consumption: <3W

Silver aluminum housing

Operating temp: - 20C° t o +70C°

Storage temp: - 30C° t o +80C°
