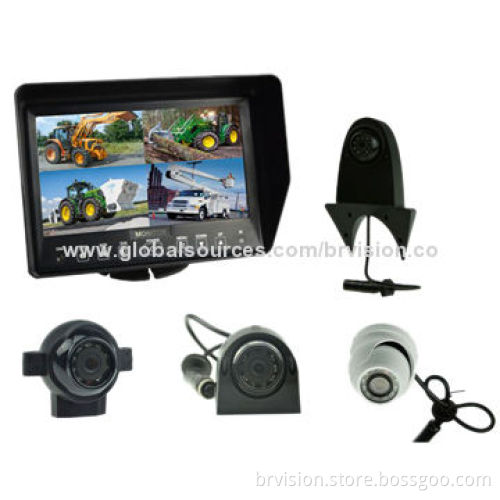

Bus surveillance system with 7.0-inch monitor and rear/front/side view and Doom cameraNew

Bus surveillance system with 7.0-inch monitor and rear/front/side view and Doom cameraNew

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

7" TFT LCD monitor

Two video input

IR rearview camera

When select the reverse gear, it automatically switch into video 2

20M extension cable

DC 12-24V for heavy duty

Monitor specifications:

Screen size: 7-inch panel (diagonal length)
Input: 2-way video input
System: PAL and NTSC auto switching
Resolution: 480 x R-G-B x 234
Power supply range: 12-24V DC
Built-in speaker (optional)
Heavy duty reversing
OSD menu
Contrast, color, brightness adjustable
View angle range: (left/right) 65 degrees (top) 40 degrees (down) 15 degrees

BR-RVC14 camera specifications:

Ball camera with shark mount bracket
IP rating: IP68
Image sensors: 1/4″CCD
Resolution (TV lines): 420
Lens angle (Deg.): 120°
No audio

BR-RVC08 camera specifications:

IP rating: IP68
Image sensors: 1/4″CCD
Resolution (TV lines): 420
Lens angle: 120°
No audio

BR-RVC07 camera specifications:

Ball camera for front view
IP rating: IP68
Image sensors: 1/4″CCD
Resolution (TV lines): 420
Lens angle (Deg.): 120°
No audio

BR-DV004 camera specifications:

Mini dome camera for bus
IP rating: IP 65
Image sensor 1/3" CCD
Horizontal resolution 420 TV Line
Lens angle: 120°
IR LED for night vision
Aluminium housing

Screen size: 7-inch panel (diagonal length)

Input: 2-way video input

System: PAL and NTSC auto switching

Resolution: 480 x R-G-B x 234

Power supply range: 12-24V DC

Built-in speaker (optional)

Heavy duty reversing

OSD menu

Contrast, color, brightness adjustable

View angle range: (left/right) 65 degrees (top) 40 degrees (down) 15 degrees

Ball camera with shark mount bracket

IP rating: IP68

Image sensors: 1/4″CCD

Resolution (TV lines): 420

Lens angle (Deg.): 120°

No audio

IP rating: IP68

Image sensors: 1/4″CCD

Resolution (TV lines): 420

Lens angle: 120°

No audio

Ball camera for front view

IP rating: IP68

Image sensors: 1/4″CCD

Resolution (TV lines): 420

Lens angle (Deg.): 120°

No audio

Mini dome camera for bus

IP rating: IP 65

Image sensor 1/3" CCD

Horizontal resolution 420 TV Line

Lens angle: 120°

IR LED for night vision

Aluminium housing
