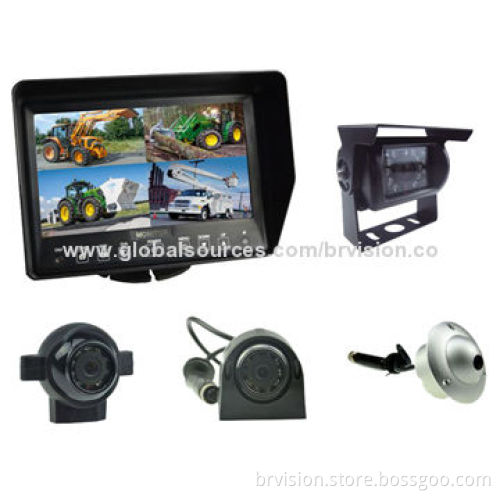

Vehicle safety backup camera system with 7.0-inch monitor and waterproof night vision camerasNew

Vehicle safety backup camera system with 7.0-inch monitor and waterproof night vision camerasNew

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

7" TFT LCD monitor

Two video input

IR rearview camera

When select the reverse gear, it automatically switch into video 2

20M extension cable

DC 12-24V for heavy duty

Monitor specifications:

Screen size: 7-inch panel (diagonal length)
Input: 2-way video input
Systems: PAL and NTSC auto switching
Resolution: 480 x R-G-B x 234
Power supply range: 12-24V DC
Built-in speaker (optional)
Heavy duty reversing
OSD menu
Contrast, color, brightness adjustable
View angle range: (left/right) 65 degrees (top) 40 degrees (down) 15 degrees

BR-RVC01 camera specifications:

Revers camera for back view'
Image sensor: 1/4" color CCD
Resolution: 420TVL
IP rating: IP68
Wide angle: 120/150°
Audio function (Optional)
Easy for installation

BR-RVC08 camera specifications:

IP rating: IP68
Image sensors: 1/4″CCD
Resolution (TV lines): 420
Lens angle: 120°
No audio

BR-RVC07 camera specifications:

Ball camera for front view
IP rating: IP68
Image sensors: 1/4″ CCD
Resolution (TV lines): 420
Lens angle (Deg.): 120°
No audio

BR-RVC05 camera specifications:

Ceiling camera
IP rating: IP65
Image sensors: 1/4″ CCD
Resolution (TV lines): 420
Lens angle (Deg.): 120°
No audio

Screen size: 7-inch panel (diagonal length)

Input: 2-way video input

Systems: PAL and NTSC auto switching

Resolution: 480 x R-G-B x 234

Power supply range: 12-24V DC

Built-in speaker (optional)

Heavy duty reversing

OSD menu

Contrast, color, brightness adjustable

View angle range: (left/right) 65 degrees (top) 40 degrees (down) 15 degrees

Revers camera for back view'

Image sensor: 1/4" color CCD

Resolution: 420TVL

IP rating: IP68

Wide angle: 120/150°

Audio function (Optional)

Easy for installation

IP rating: IP68

Image sensors: 1/4″CCD

Resolution (TV lines): 420

Lens angle: 120°

No audio

Ball camera for front view

IP rating: IP68

Image sensors: 1/4″ CCD

Resolution (TV lines): 420

Lens angle (Deg.): 120°

No audio

Ceiling camera

IP rating: IP65

Image sensors: 1/4″ CCD

Resolution (TV lines): 420

Lens angle (Deg.): 120°

No audio
