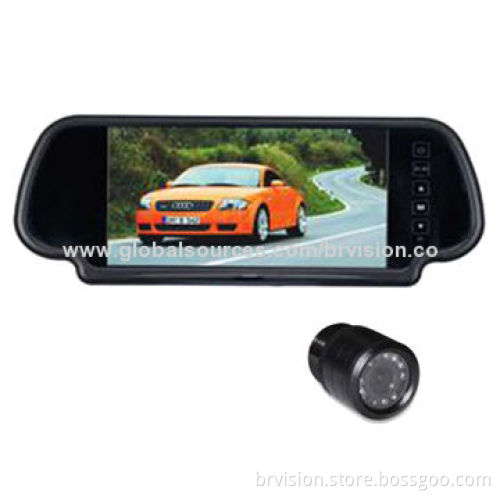

Car rear-view system with 7.0-inch panel mirror monitor and waterproof wide view angle bullet cameraNew
  • Car rear-view system with 7.0-inch panel mirror monitor and waterproof wide view angle bullet cameraNew
  • Car rear-view system with 7.0-inch panel mirror monitor and waterproof wide view angle bullet cameraNew
  • Car rear-view system with 7.0-inch panel mirror monitor and waterproof wide view angle bullet cameraNew
Car rear-view system with 7.0-inch panel mirror monitor and waterproof wide view angle bullet cameraNew
Car rear-view system with 7.0-inch panel mirror monitor and waterproof wide view angle bullet cameraNew
Car rear-view system with 7.0-inch panel mirror monitor and waterproof wide view angle bullet cameraNew

Car rear-view system with 7.0-inch panel mirror monitor and waterproof wide view angle bullet cameraNew

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Monitor specifications:
      • Screen size: 7-inch panel (diagonal length)
      • Input: 2-way video input
      • System: PAL and NTSC auto switching
      • Resolution: 480 x RGB x 234 pixels
      • Power supply range: 12-24V DC
      • Built-in speaker (optional)
      • Heavy duty reversing
      • OSD menu
      • With contrast, color, brightness adjustments
      • View angle range: (left/right) 65°, (top) 40° and (down) 15°
    • Camera specifications:
      • Image device: 1/3-inch CMOS image sensor
      • TV systems: NTSC/PAL
      • Viewing angle: 170°
      • Waterproof
      • Effective pixels: 510 x 496 pixels
      • Sensing area: 5.961 x 4.276mm
      • Resolution: 420TVL
      • 1.8mm waterproof lens
      • Minimum illumination: 0 to 01 lux
      • Video output: 1-0vp-p, 75Ω
      • Gamma consumption range: 0 to 45
      • White balance: automatic
      • S/N ratio: better than 48dB
      • Electronic shutter: 1/60 to 1/5,000 seconds
      • Power supply: 12V DC
      • Operating temperatures: -20 to 70°C (95% RH maximum)
      • Storage temperatures: -40 to 80°C (95% RH maximum)
  • Monitor specifications:
    • Screen size: 7-inch panel (diagonal length)
    • Input: 2-way video input
    • System: PAL and NTSC auto switching
    • Resolution: 480 x RGB x 234 pixels
    • Power supply range: 12-24V DC
    • Built-in speaker (optional)
    • Heavy duty reversing
    • OSD menu
    • With contrast, color, brightness adjustments
    • View angle range: (left/right) 65°, (top) 40° and (down) 15°
  • Camera specifications:
    • Image device: 1/3-inch CMOS image sensor
    • TV systems: NTSC/PAL
    • Viewing angle: 170°
    • Waterproof
    • Effective pixels: 510 x 496 pixels
    • Sensing area: 5.961 x 4.276mm
    • Resolution: 420TVL
    • 1.8mm waterproof lens
    • Minimum illumination: 0 to 01 lux
    • Video output: 1-0vp-p, 75Ω
    • Gamma consumption range: 0 to 45
    • White balance: automatic
    • S/N ratio: better than 48dB
    • Electronic shutter: 1/60 to 1/5,000 seconds
    • Power supply: 12V DC
    • Operating temperatures: -20 to 70°C (95% RH maximum)
    • Storage temperatures: -40 to 80°C (95% RH maximum)
  • Screen size: 7-inch panel (diagonal length)
  • Input: 2-way video input
  • System: PAL and NTSC auto switching
  • Resolution: 480 x RGB x 234 pixels
  • Power supply range: 12-24V DC
  • Built-in speaker (optional)
  • Heavy duty reversing
  • OSD menu
  • With contrast, color, brightness adjustments
  • View angle range: (left/right) 65°, (top) 40° and (down) 15°
  • Image device: 1/3-inch CMOS image sensor
  • TV systems: NTSC/PAL
  • Viewing angle: 170°
  • Waterproof
  • Effective pixels: 510 x 496 pixels
  • Sensing area: 5.961 x 4.276mm
  • Resolution: 420TVL
  • 1.8mm waterproof lens
  • Minimum illumination: 0 to 01 lux
  • Video output: 1-0vp-p, 75Ω
  • Gamma consumption range: 0 to 45
  • White balance: automatic
  • S/N ratio: better than 48dB
  • Electronic shutter: 1/60 to 1/5,000 seconds
  • Power supply: 12V DC
  • Operating temperatures: -20 to 70°C (95% RH maximum)
  • Storage temperatures: -40 to 80°C (95% RH maximum)
