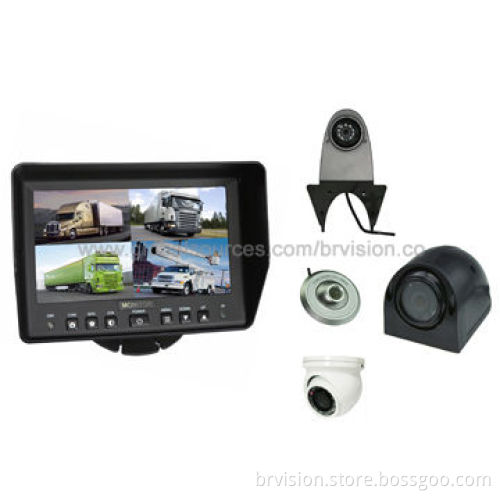

7-inch Quad Security Monitor, Waterproof, Dome and Shark Camera for Surveillance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Key features:

Built-in quad control box function

Rearview monitor, supports four camera inputs

With remote controller

Single/split/quad view is selectable

7-language OSD display

PAL/NTSC optional, mirror/normal image (optional)

Automatically turn on when the reversing gear is engaged

Trigger priority: CAM 1>, CAM 2>, CAM 3>, CAM 4

With high-/low-voltage protection and short-circuitprotection

IR rearview camera

12 to 24V DC for heavy duty

Monitor specifications:

7-inch TFT LCD monitor, 16:9

Wide viewing angle (CRI: >10): (up/down/left/right):40/40/60/60°

Resolution: 400 RGB x 234 dots

Color systems: PAL/NTSC (selectable)

Power requirement: 12/24V DC

Power consumption: 5W

Operating temperature: -20 to 70°C

Storage temperature: -30 to 80°C

Dimensions (L x W x D): 183 x 125 x 38mm

Camera specifications:

High-resolution backup camera

Image sensor: 1/3-inch CCD

TV systems: NTSC/PAL (optional)

Horizontal resolution: 420TVL

Lens angle: 120°

Minimum illumination: 0lux (LED on)

IR LED: 10 pieces

Night-vision distance: 45ft

Operating temperature: -20 to70°C, 95% RH

Lens: f = 2.5/1.7mm

Power supply: 12V DC

Size (L x W x H): 70 x 50 x 40mm

Waterproof rate: IP68

Shell material: aluminum alloy
