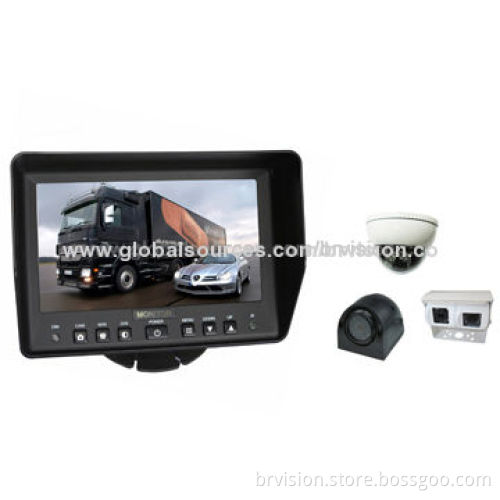

Rear View Camera System with 7-inch Monitor, Waterproof Dome and Dual-lens Camera
  • Rear View Camera System with 7-inch Monitor, Waterproof Dome and Dual-lens Camera
  • Rear View Camera System with 7-inch Monitor, Waterproof Dome and Dual-lens Camera
Rear View Camera System with 7-inch Monitor, Waterproof Dome and Dual-lens Camera
Rear View Camera System with 7-inch Monitor, Waterproof Dome and Dual-lens Camera

Rear View Camera System with 7-inch Monitor, Waterproof Dome and Dual-lens Camera

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • 7-inch TFT LCD monitor
    • IR rear-view camera
    • When selecting the reverse gear, it automatically switches into video 2
  • Specifications:
    • Screen size: 7-inch panel (diagonal length)
    • Input: 2-way video input
    • Systems: PAL and NTSC auto-switching
    • Resolution: 480 x RGB x 234 pixels
    • Power supply: 12-24V DC
    • Built-in speaker (optional)
    • Heavy-duty reversing
    • OSD menu: contrast, color, brightness adjustable
    • Viewing angle range: (left/right) 65 degrees (top) 40 degrees, (down) 15 degrees
    • Camera:
      • Type high-resolution backup camera
      • Image sensor: 1/3-inch CCD
      • TV system: NTSC/PAL (optional)
      • Effective pixels:
        • N: 510 x 492
        • P: 500 x 582
      • Horizontal resolution: 420TVL
      • Lens angle: 120°
      • Minimum illumination: 0 Lux (LED-on)
      • IR LED 10 pieces for night vision distance: 45ft
      • Audio function
      • Operating temperature: -20 to 70°C, RH 95% (maximum)
      • Lens: f = 2.5/1.7mm
      • Power supply: 12V DC
      • Size (L x W x H): 70 x 50 x 40mm
      • Net weight: 350g
      • Waterproof rate: IP68
      • Shell material: aluminum alloy
    • BR-RVC13:
      • Image sensor: 1/3-inch color Sony CCD
      • Resolution: 480TVL
      • Electronics shutter speed: 1/60-1/5,000 (seconds)
      • IP rating: IP68
      • Wide angle: 95/120 degrees
      • Power supply: 12V DC (10%)
      • Night vision: IR lamp
      • Rain/sun shutter provide to protect your camera
      • Easy for installation
  • 7-inch TFT LCD monitor
  • IR rear-view camera
  • When selecting the reverse gear, it automatically switches into video 2
  • Screen size: 7-inch panel (diagonal length)
  • Input: 2-way video input
  • Systems: PAL and NTSC auto-switching
  • Resolution: 480 x RGB x 234 pixels
  • Power supply: 12-24V DC
  • Built-in speaker (optional)
  • Heavy-duty reversing
  • OSD menu: contrast, color, brightness adjustable
  • Viewing angle range: (left/right) 65 degrees (top) 40 degrees, (down) 15 degrees
  • Camera:
    • Type high-resolution backup camera
    • Image sensor: 1/3-inch CCD
    • TV system: NTSC/PAL (optional)
    • Effective pixels:
      • N: 510 x 492
      • P: 500 x 582
    • Horizontal resolution: 420TVL
    • Lens angle: 120°
    • Minimum illumination: 0 Lux (LED-on)
    • IR LED 10 pieces for night vision distance: 45ft
    • Audio function
    • Operating temperature: -20 to 70°C, RH 95% (maximum)
    • Lens: f = 2.5/1.7mm
    • Power supply: 12V DC
    • Size (L x W x H): 70 x 50 x 40mm
    • Net weight: 350g
    • Waterproof rate: IP68
    • Shell material: aluminum alloy
  • BR-RVC13:
    • Image sensor: 1/3-inch color Sony CCD
    • Resolution: 480TVL
    • Electronics shutter speed: 1/60-1/5,000 (seconds)
    • IP rating: IP68
    • Wide angle: 95/120 degrees
    • Power supply: 12V DC (10%)
    • Night vision: IR lamp
    • Rain/sun shutter provide to protect your camera
    • Easy for installation
  • Type high-resolution backup camera
  • Image sensor: 1/3-inch CCD
  • TV system: NTSC/PAL (optional)
  • Effective pixels:
    • N: 510 x 492
    • P: 500 x 582
  • Horizontal resolution: 420TVL
  • Lens angle: 120°
  • Minimum illumination: 0 Lux (LED-on)
  • IR LED 10 pieces for night vision distance: 45ft
  • Audio function
  • Operating temperature: -20 to 70°C, RH 95% (maximum)
  • Lens: f = 2.5/1.7mm
  • Power supply: 12V DC
  • Size (L x W x H): 70 x 50 x 40mm
  • Net weight: 350g
  • Waterproof rate: IP68
  • Shell material: aluminum alloy
  • N: 510 x 492
  • P: 500 x 582
  • Image sensor: 1/3-inch color Sony CCD
  • Resolution: 480TVL
  • Electronics shutter speed: 1/60-1/5,000 (seconds)
  • IP rating: IP68
  • Wide angle: 95/120 degrees
  • Power supply: 12V DC (10%)
  • Night vision: IR lamp
  • Rain/sun shutter provide to protect your camera
  • Easy for installation
