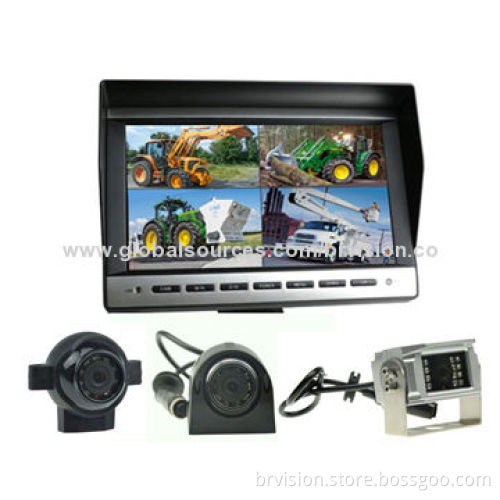

Vehicle Rear-view System with 10.1-inch TFT LCD Quad Monitor and Waterproof CameraNew

Vehicle Rear-view System with 10.1-inch TFT LCD Quad Monitor and Waterproof CameraNew

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Key features:

Built-in quad control box function
Rear-view monitor supports four camera inputs
With remote controller
Single view/split view/quad view selectable
7 languages OSD display
PAL/NTSC optional, mirror/normal image optional
Automatically turn on when the reversing gear is engaged
Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
With high-low voltage protection and short circuit protection
IR rear-view camera
DC 12-24V for heavy duty

Monitor specifications:

10.1-inch TFT LCD monitor, 16:9
Wide view angle (CR>10): (up/down/left/right) 70/80/80/80°
Resolution: WSVGA 1024 horizontal x 600 vertical pixels
Brightness: 3,400cd/m²
Color system: PAL/NTSC (selectable)
Power requirement: 12/24V DC
Power consumption: 5W
Operating temperatures: -20 to 70°C
Storage temperatures: -30 to 80°C
Dimensions: 261 (L) x 177 (W) x 70 (D)

BR-RVC16 camera specification:

Type: high resolution backup camera
Image sensor: 1/4-inch Sharp/Sony CCD
TV system: NTSC/PAL optional
Effective pixels: N: 510x492 pixels; P: 500x582 pixels
Horizontal resolution: 420TVL
Lens angle: 120°
Minimum illumination: 0 lux (LED on)
IR LED: 10pcs
Night vision distance: 45ft
Operating temperature: -20-+70°C, 95% RH maximum
Lens: f=2.8mm
Power supply: DC 12V
Waterproof rate: IP68
Shell material: aluminum alloy

BR-RVC07 camera specification:

Ball camera for front view
IP rating: IP68
Image sensors: 1/4-inch CCD
Resolution: 420TVL
Lens angle: 120°
No audio

BR-RVC08 camera specification:

Side camera (left/right side camera)
IP rating: IP68
Image sensors: 1/4-inch CCD
Resolution: 420TVL
Lens angle: 120°
No audio

Built-in quad control box function

Rear-view monitor supports four camera inputs

With remote controller

Single view/split view/quad view selectable

7 languages OSD display

PAL/NTSC optional, mirror/normal image optional

Automatically turn on when the reversing gear is engaged

Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4

With high-low voltage protection and short circuit protection

IR rear-view camera

DC 12-24V for heavy duty

10.1-inch TFT LCD monitor, 16:9

Wide view angle (CR>10): (up/down/left/right) 70/80/80/80°

Resolution: WSVGA 1024 horizontal x 600 vertical pixels

Brightness: 3,400cd/m²

Color system: PAL/NTSC (selectable)

Power requirement: 12/24V DC

Power consumption: 5W

Operating temperatures: -20 to 70°C

Storage temperatures: -30 to 80°C

Dimensions: 261 (L) x 177 (W) x 70 (D)

Type: high resolution backup camera

Image sensor: 1/4-inch Sharp/Sony CCD

TV system: NTSC/PAL optional

Effective pixels: N: 510x492 pixels; P: 500x582 pixels

Horizontal resolution: 420TVL

Lens angle: 120°

Minimum illumination: 0 lux (LED on)

IR LED: 10pcs

Night vision distance: 45ft

Operating temperature: -20-+70°C, 95% RH maximum

Lens: f=2.8mm

Power supply: DC 12V

Waterproof rate: IP68

Shell material: aluminum alloy

Ball camera for front view

IP rating: IP68

Image sensors: 1/4-inch CCD

Resolution: 420TVL

Lens angle: 120°

No audio

Side camera (left/right side camera)

IP rating: IP68

Image sensors: 1/4-inch CCD

Resolution: 420TVL

Lens angle: 120°

No audio
