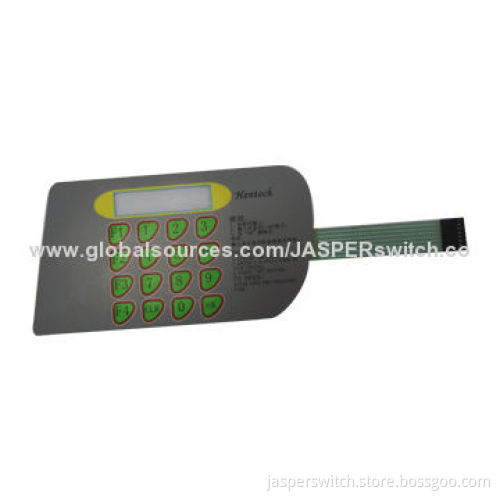

Membrane Switch with Multi-color Graphic Overlays, 100mA at 30V DC Current Rating
  • Membrane Switch with Multi-color Graphic Overlays, 100mA at 30V DC Current Rating
Membrane Switch with Multi-color Graphic Overlays, 100mA at 30V DC Current Rating

Membrane Switch with Multi-color Graphic Overlays, 100mA at 30V DC Current Rating

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Materials:
    • Polycarbonate, polyester or polyvinyl chloride layers
    • Multi-color graphic overlays
    • Engineered adhesives
    • Metal domes or polydomes
  • Mechanical characteristics:
    • Actuation force, no tactile: 4 to 16oz
    • Actuation force, tactile: 10 to 16oz, typical
    • Switch stack-up thickness: available for custom specification
  • Electrical features:
    • Current rating: 100mA at 30V DC, 1W
    • Actuations, tactile: 1 million minimum at maximum rated load.
    • Actuations, no tactile: 5 millions minimum at maximum rated load.
    • Switch contact bounce, tactile: 10 milliseconds (maximum)
    • Switch contact bounce, no tactile: 5 milliseconds (maximum)
    • Termination contact resistance: 200 Ohms (maximum) loop
    • Insulation resistance: 1G Ohms Microsoft's Windows at 100V DC
  • Environmental condition:
    • Operating temperature: -20 to 100ºC
    • Storage temperature: -25 to 115ºC
    • Humidity: to 95%  RH (switch fully sealed to environment)
    • Operating tolerance
    • Printing tolerance: ±0.25mm cutting/assemble tolerance: ±0.2mm

  • Polycarbonate, polyester or polyvinyl chloride layers
  • Multi-color graphic overlays
  • Engineered adhesives
  • Metal domes or polydomes
  • Actuation force, no tactile: 4 to 16oz
  • Actuation force, tactile: 10 to 16oz, typical
  • Switch stack-up thickness: available for custom specification
  • Current rating: 100mA at 30V DC, 1W
  • Actuations, tactile: 1 million minimum at maximum rated load.
  • Actuations, no tactile: 5 millions minimum at maximum rated load.
  • Switch contact bounce, tactile: 10 milliseconds (maximum)
  • Switch contact bounce, no tactile: 5 milliseconds (maximum)
  • Termination contact resistance: 200 Ohms (maximum) loop
  • Insulation resistance: 1G Ohms Microsoft's Windows at 100V DC
  • Operating temperature: -20 to 100ºC
  • Storage temperature: -25 to 115ºC
  • Humidity: to 95%  RH (switch fully sealed to environment)
  • Operating tolerance
  • Printing tolerance: ±0.25mm cutting/assemble tolerance: ±0.2mm
