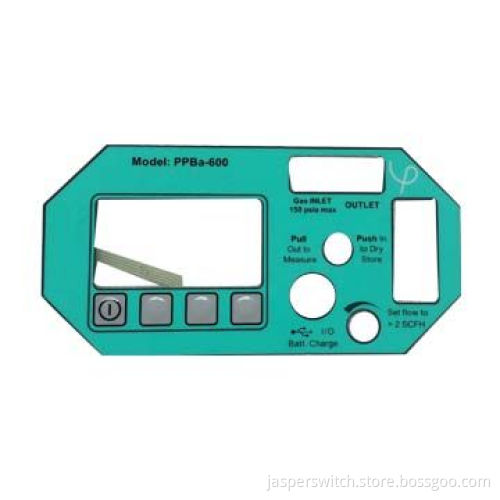

Membrane Switch, Screen Printed
  • Membrane Switch, Screen Printed
Membrane Switch, Screen Printed

Membrane Switch, Screen Printed

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Printing methods
    • Screen printed
    • Offset printed
  • Materials:
    • Polycarbonate, polyester or polyvinyl chloride layers
    • Multi-color graphic overlays
    • Engineered adhesives
    • Metal domes or poly domes
  • Mechanical characteristics:
    • Actuation force, non-tactile: 4 to 16oz
    • Actuation force, tactile: 10 to 16oz typical
    • Switch stack-up thickness: available for custom specification
  • Electrical features:
    • Current rating: 100mA at 30V DC, 1W
    • Actuations, tactile: 1 million minimum at maximum rated load.
    • Actuations, non-tactile: 5 million minimum at maximum rated load
    • Switch contact bounce, tactile: 10 milliseconds maximum
    • Switch contact bounce, non-tactile: 5 milliseconds maximum
    • Termination contact resistance: 200 ohms maxi8mum loop
    • Insulation resistance: 1 ohm W at 100V DC
  • Environment condition:
    • Operation temperature: -20 to 100°C
    • Storage temperature: -25 to 115°C
    • Humidity: to 95% RH (switch fully sealed to environment)
  • Operational tolerance:
    • Printing tolerance: ± 0.25mm
    • Cutting/assemble tolerance: ± 0.2mm
  • Screen printed
  • Offset printed
  • Polycarbonate, polyester or polyvinyl chloride layers
  • Multi-color graphic overlays
  • Engineered adhesives
  • Metal domes or poly domes
  • Actuation force, non-tactile: 4 to 16oz
  • Actuation force, tactile: 10 to 16oz typical
  • Switch stack-up thickness: available for custom specification
  • Current rating: 100mA at 30V DC, 1W
  • Actuations, tactile: 1 million minimum at maximum rated load.
  • Actuations, non-tactile: 5 million minimum at maximum rated load
  • Switch contact bounce, tactile: 10 milliseconds maximum
  • Switch contact bounce, non-tactile: 5 milliseconds maximum
  • Termination contact resistance: 200 ohms maxi8mum loop
  • Insulation resistance: 1 ohm W at 100V DC
  • Operation temperature: -20 to 100°C
  • Storage temperature: -25 to 115°C
  • Humidity: to 95% RH (switch fully sealed to environment)
  • Printing tolerance: ± 0.25mm
  • Cutting/assemble tolerance: ± 0.2mm
