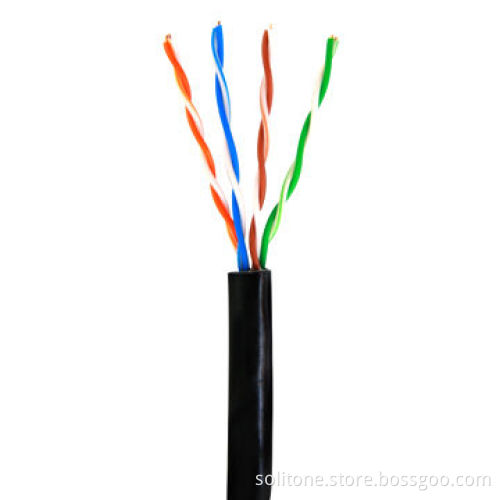

UTP Cat5e Twisted Pairs LAN Cable, Waterproof, Used for Outdoor/19 Ohms (Maximum)/100m DC Loop Resin

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or L/C at Sight

Product Description

Specifications:

Cable data:

Applications:

ISDN, 10 Base-T (IEEE 802.3), 100 Base-T (IEEE 802.3, 155Mbps ATM, 100Vg-any LAN (IEEE 802.12), TP-PMD (ANSIX3T9.5), 16Mbps Token Ring (IEEE 802.5)
Industry certificates: ANSITIA/EIA 568-B.2, EN50173, EN50288-3-1

Electrical performance: at 100MHz

Low-frequency

Dielectric strength: 2.5kV DC, 2-second

DC loop resistance: 19 Ohms (maximum)/100m

Resistance unbalance: 2% (maximum)

Insulation resistance: 500m/Ohms (minimum)/km at 100 to 500Vt

Capacitance unbalance (pair to ground): 1600Pf (maximum)/100m

Conductor: solid bare copper

AWG: 24

Conductor: Ø0.51mm

Insulation: PE

Average thickness (±0.03mm): 0.20mm

Min point thickness: 0.17mm

Insulation (±0.03mm): Ø0.91mm

Twisting lay length: 30mm underneath

Cabling lay length: 200mm underneath

Jacket: PVC (inside) + LD-PE (outside)

Average thickness: 0.5mm

Min point thickness: 0.43mm

Outer (±1.0mm): Ø5.1

Rip cord: yes

Weight: 32kg/km

ISDN, 10 Base-T (IEEE 802.3), 100 Base-T (IEEE 802.3, 155Mbps ATM, 100Vg-any LAN (IEEE 802.12), TP-PMD (ANSIX3T9.5), 16Mbps Token Ring (IEEE 802.5)

Industry certificates: ANSITIA/EIA 568-B.2, EN50173, EN50288-3-1
