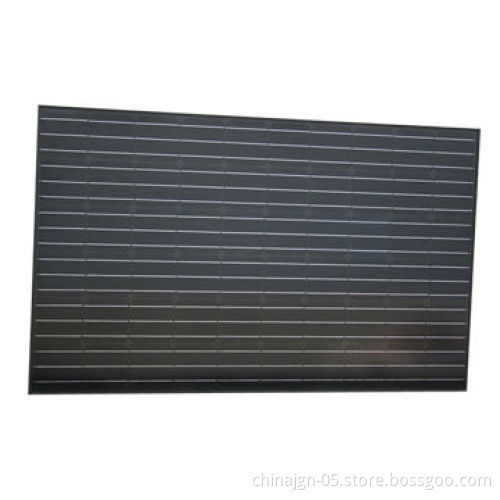

250W Poly solar panel
  • 250W Poly solar panel
  • 250W Poly solar panel
  • 250W Poly solar panel
250W Poly solar panel
250W Poly solar panel
250W Poly solar panel

250W Poly solar panel

Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Maximum power (Pmax): 250W
  • Optimum operating voltage (Vm): 30.76V
  • Optimum operating current (Im): 8.13A
  • Open-circuit voltage (Voc): 37.75V
  • Short-circuit current (Isc): 8.55A
  • Size: 1,620*987*50mm
  • Number of cell: 60 pieces in series
  • Size: 156 x 156mm
  • Cell efficiency: 17.1%
  • Output tolerance (Pmax): 0 to +3%
  • Maximum system voltage: 1000V
  • Maximum series fuse rating: 15A
  • Temperature cycling range: -40 to 85° C
  • Temperature co-efficient:
    • Isc: +(0.053 ± 0.01)%/K
    • Voc: -(0.35 ± 0.001)%/K
    • Pmax: -(0.40 ± 0.05)%/K
  • Module size: 1,650 x 992 x 40mm
  • Weight: 19.5kg
  • Warranty:
    • 10 year at 90% power output
    • 25 years at 80% power output
  • Isc: +(0.053 ± 0.01)%/K
  • Voc: -(0.35 ± 0.001)%/K
  • Pmax: -(0.40 ± 0.05)%/K
  • 10 year at 90% power output
  • 25 years at 80% power output
