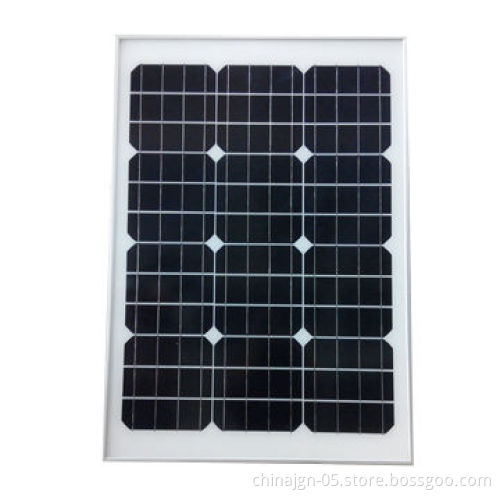

Mono-Crystalline Solar Panel (JGN-M50W)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum power (Pm): 50W

Power tolerance (+3/-2%)

Voltage at max power (Vmp): 18V

Current at max power (Imp): 2.78A

Open circuit voltage (Voc): 21.6V

Short circuit current (Isc): 3.03A

Operating temperatures: - 40-85°C

Maximum system voltage: 800V

STC: Irradiance 1,000W/m², module temperature 25° C, AM=1.5

Solar cell: Monocrystalline sillicon solar cell

No. Of cells and connections: 36PCS

Dimension of module: 765*535*35mm

Weight: 5kg

Junction box :Ip65 rated

Packing configuration: 5pcs/ctn

Warranty: Pm is not less than 90% in 10 years, 25 years lifetime
