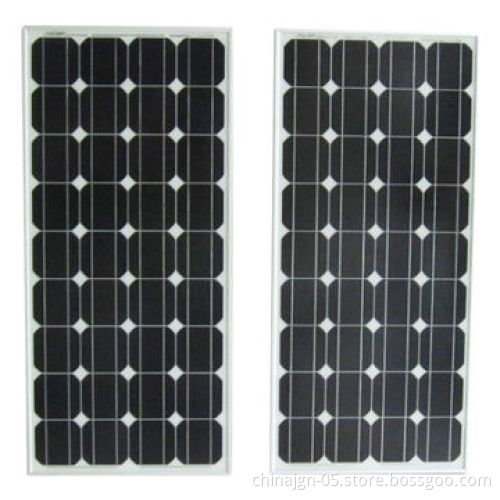

75W Mono-crystalline Solar Panel

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum power (Wmp): 75W

Maximum power voltage (Vmp): 17.5V

Maximum power current (Imp): 4.29

Open circuit voltage (Voc): 21.86V

Short-circuit current (Isc): 4.67

Weight per piece: 7.5kg

Cells typs & size: mono-crystalline silicone: 125*125mm

Size of module: 1,110*550*35mm

Nominal operating cell temperature (NOCT): 45±2

Maximum system voltage: 1,000V DC

Cell efficiency: >16%

Maximum series fuse rating: 10A

Temperature coefficients of Isc: ±0.05%

Temperature coefficients of Voc: -0.33mv

Temperature coefficients of Pm: -0.23%

Temperature range: -40+85 degrees C

Tolerance wattage: ±5%

Front glass: 3.2mm tempered, high transmission, low iron

Junction box type: black IP65

Output tolerance: ±3%

Standard test conditions: AM1.5 1,000W/m² 25

Features:

High-efficiency solar cell ensures high performance of solar module and creates more power in peak hours
Anti-reflecting coating and high-transmission rate glass increases the power output and mechanical strength of solar module
Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.
Water-resistant junction box
25 years linear power warranty: 3 years product warranty,10 years at 90% of minimal rated power output, 25 years at 80% of minimal rated power output
Rigorous quality control meeting the highest international standards;
Products meet international standards and through professional testing and certification authority (SGS, CE)
Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields

High-efficiency solar cell ensures high performance of solar module and creates more power in peak hours

Anti-reflecting coating and high-transmission rate glass increases the power output and mechanical strength of solar module

Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.

Water-resistant junction box

25 years linear power warranty: 3 years product warranty,10 years at 90% of minimal rated power output, 25 years at 80% of minimal rated power output

Rigorous quality control meeting the highest international standards;

Products meet international standards and through professional testing and certification authority (SGS, CE)

Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields
