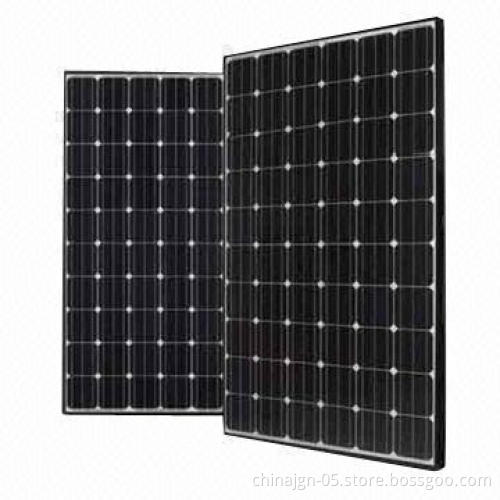

Mono Solar Panel with 250Wp Maximum Power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Item number: JGN250-60M

Mono or poly mono

Maximum power: 250Wp

Maximum power voltage: 0.96V

Maximum power current: 8.07A

Open-circuit voltage: 37.92V

Short-circuit current: 8.62A

Number of cells: 60pcs

Size of module: 1,650*992*40/50mm

Maximum system voltage: 1,000V

Temperature coefficients of Isc (%): 0.065+/-0.015%/DC

Temperature coefficients of Voc (%): -(2.23+/-0.1)mv/ DC

Temperature coefficients of Pm (%): -(0.5+-0.05)/DC

Temperature coefficients of Im (%): +0.1/DC

Temperature coefficients of Vm (%): -0.38/DC

Temperature range: -40-+85DC

Tolerance wattage (+/-5%) -/+3%

Surface maximum load capacity: 60m/s (200kg/sqm)

Allowable hail load steel ball fall down from 1m height

Weight per piece: 21.5kg

Length of cables: 900mm

Cell efficiency: >17.9%

Module efficiency: >15.27%

Output tolerance: +/-3%

Frame (material, corners): aluminum

Standard test conditions: AM1.5 1000w/m² 25DC

Warranty: 10 years product warranty and 25 years lifetime

FF: 76.48%

Packing: 2pcs/ctn
