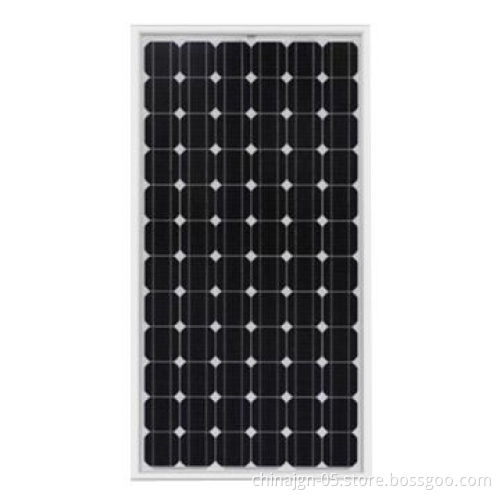

300W Monocrystalline Solar Panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum power (Pm): 300W

Power tolerance (+3/-2%)

Voltage at max power (Vmp): 36V

Current at max power (Imp): 8.33A

Open circuit voltage (Voc): 43.2V

Short circuit current (Isc): 9.32A

Operating temperature: - 40°C +85°C

Maximum system voltage: 1000V

Maximum series fuse rating: 20A

STC: irradiance 1000W/m²

Module temperature: 25°C, AM=1.5

Solar cell: monocrystalline silicon solar cell

No. of cells and connections: 72=6*12pcs

Dimensions of module: 990*1950* 45mm

Weight: 23kg

Junction box: IP65 rated

Packing configuration: 1pc/ctn, 1960x1000x55mm

Warranty: Pm is not less than 90% in 10 years, 25 years lifespan

Current temperature coefficient: 3.5±0.01%mA/K

Voltage temperature coefficient: -(176±10) mV/K

Power temperature coefficient: -(0.38±0.05) %/K
