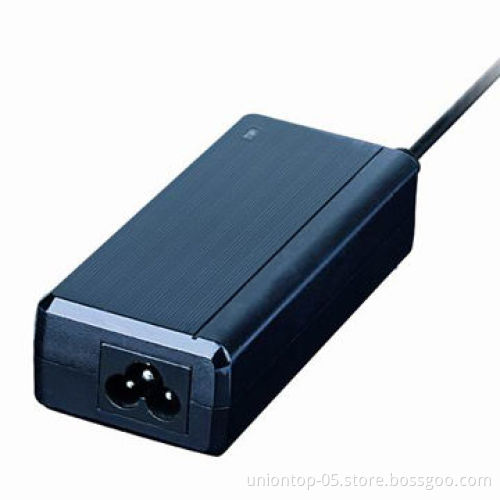

18V 3.5A laptop AC power adapter, 65W laptop adapter with CE FCC UL RoHS approval

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Features:

Input:
- Input voltages: 100-240Vac full voltage 90-264Vac
- Input frequency range: 50Hz(min)-60Hz(max)
- Efficiency 80% min. At full load and within input voltage 230Vac
- Input protection:
  - Over-current Input power is off by a fuse ratings: 3.15A/250Vac
Output:
- Output voltages: +18V±5%, +32V±5%
- Output currents: 0.2A 0.05A, 2.5A 1.5A
- Line regulation: 1% max.
- Load regulation: 5% max. Min load to Max load
- Output power: 65W MAX At full load and within input voltages: 120-240Vac
Ripple + noise: 180mV max. 320mV max. Oscilloscope bandwidth=20MHz, 10uF/50V electrolytic and 0.1uF/50V ceramic capacitors are connected at output
Rise time 2S max. At Vin=230Vac/60Hz
OCP +32V 3.0~3.3A INPUT:115VAC OUTPUT: +18V/0.2A, +32V/1.5A
Output protection:
- Over-load No odor, smoke, fire, plastic deformation, and excessive heat happen. Increase load current gradually until the output is shorted or burst
- Short-circuit No odor, smoke, fire, plastic deformation, and excessive heat happen
- Over the operating temperature range

Environmental characteristics:

Storage temperature range: -20°C to +60°C
Operating temperature range: 0°Cto +40°C
Storage RH range: 5 to 95% RH: Relative humidity
Operating RH range 20 to 90%
Burn-in 4 hours (The new model for first production for 4 hour; mass production for 2 hours)
Each unit before shipping, full load at Vin=220Vac

1-year warranty

RoHS/UL/SAA/PSE/GS/CE/CB/FCC/C-tick

13 years factory experience

Input:

Input voltages: 100-240Vac full voltage 90-264Vac
Input frequency range: 50Hz(min)-60Hz(max)
Efficiency 80% min. At full load and within input voltage 230Vac
Input protection:
- Over-current Input power is off by a fuse ratings: 3.15A/250Vac

Output:

Ripple + noise: 180mV max. 320mV max. Oscilloscope bandwidth=20MHz, 10uF/50V electrolytic and 0.1uF/50V ceramic capacitors are connected at output

Rise time 2S max. At Vin=230Vac/60Hz

OCP +32V 3.0~3.3A INPUT:115VAC OUTPUT: +18V/0.2A, +32V/1.5A

Output protection:

Over-load No odor, smoke, fire, plastic deformation, and excessive heat happen. Increase load current gradually until the output is shorted or burst
Short-circuit No odor, smoke, fire, plastic deformation, and excessive heat happen
Over the operating temperature range

Input voltages: 100-240Vac full voltage 90-264Vac

Input frequency range: 50Hz(min)-60Hz(max)

Efficiency 80% min. At full load and within input voltage 230Vac

Input protection:
