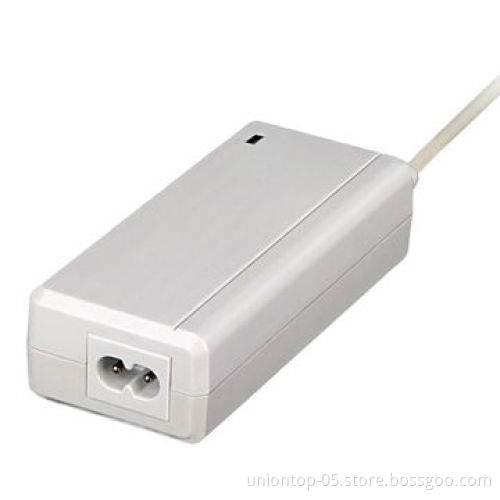

Desktop 12~48V/60/65W/19V/3.42A Laptop AC Adapter EMC & Safety Standards

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Features:

Input:
Voltages: 100-240V AC, full voltage 90-264V AC
Frequency: 50Hz-60Hz (maximum)
Efficiency 80% minimum, at full load and within input voltage 230V AC
Input protection:
- Over-current Input power is off by a fuse ratings 3.15A/250V AC
Output:
- Output voltage: +18V±5%, +32V±5%
- Output current: 0.2A, 0.05A, 2.5A, 1.5A
Line regulation 1% maximum
Load regulation 5% maximum at full load and within input voltage 120-240V AC
Ripple + noise: 180mV max. 320mV maximum
Oscilloscope bandwidth=20MHz, 10uF/50V electrolytic and 0.1uF/50V ceramic capacitors are connected at output
Rise time 2S maximum, at Vin=230V AC/60Hz output
Output: +18V/0.2A, +32V/1.5A
Output protection:
- Over-load no odor, smoke, fire, plastic deformation, and excessive heat happen
Increase load current gradually until the output is shorted or burst
Short-circuit No odor, smoke, fire, plastic deformation, and excessive heat happen
Over the operating temperature range

Environmental characteristics:

Storage temperature range: -20 to 60°C
Operating temperature range: 0 to 40°C
Storage RH range: 5 to 95% RH: Relative humidity
Operating RH range 20 to 90%
Burn-in 4 hours (the new model for first production for 4 hour, mass production for 2 hours)
Each unit before shipping, full load at Vin=220V AC

19V, 3.42A laptop AC adapter

1-year warranty

With RoHS, UL, SAA, PSE, GS, CE, CB, FCC, C-tick marks

13-years factory experience

Input:

Voltages: 100-240V AC, full voltage 90-264V AC

Frequency: 50Hz-60Hz (maximum)

Efficiency 80% minimum, at full load and within input voltage 230V AC

Input protection:
