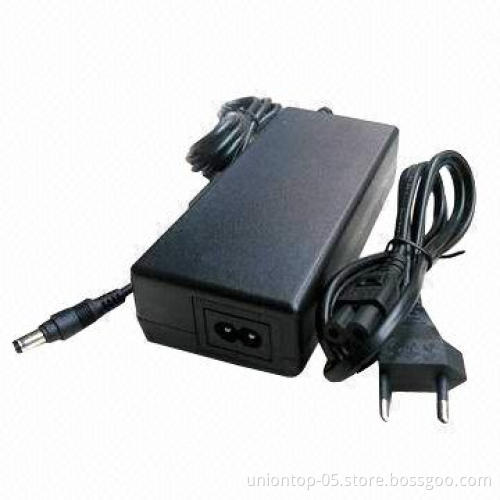

Desktop 12V 8A power adapter for CCTV camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features

Compact size and easy to carry

Punctual delivery& Competitive price

Single output to 96W

Meet Safety Agency Requirements& Complies EMI/EMC

Modified and Customized design Available

1 year warranty

CE FCC LVD C-tick certification passed

Desktop type

Electrical Specifications

Environmental Specifications

Input voltage: 90-264V AC,47/63Hz

Input current: 1.5A(Max)100/240VAC

Surge current: AT 100V AC 40A Max/AT 240V AC 80A Max

Leakage current: ClassII0.25mA Max,ClassI3.5MA

No load power consumption: 0.3W max

Output efficiency: 100Wmax

Output voltage: 15V-48V

Over voltage protection: 120%min

Over current protection: 120%min

Short circuit -protection: Automatic recovery

Output voltage range: ±5%

Mode: constant current/constant voltage ，CC/CV Mode

Type: desktop power adapter

Operating temperature: 0 to + 40 deg. C

Storage temperature: -20 to + 85 deg. C

Storage humidity: 5% ~ 90%RH

Hi-pot withstand: AC 3000V(Min),5mA(Max)

Insulation resistance test: DC 500V 100MΩ(Min)

R/S voltage:2KV~6KV
