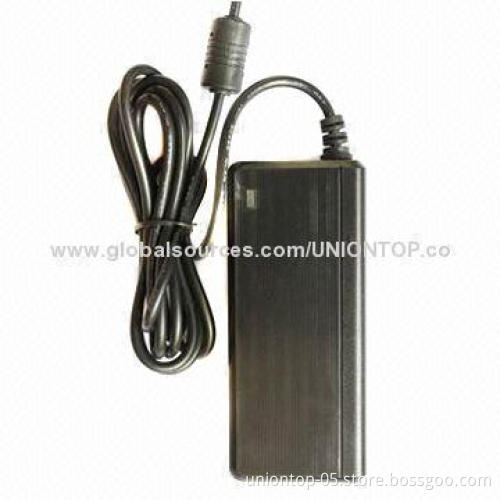

AC to DC laptop adapter, 18.5V, 3.42 with CE, FCC, UL, PSE, LVD, KC and GS approvals

AC to DC laptop adapter, 18.5V, 3.42 with CE, FCC, UL, PSE, LVD, KC and GS approvals

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Key features:

Light, extra slim, sleek and compact design
Green power, full complies with CEC level V and MEPS V EUP2011
High-power density
Extra safe design, have got their respective safety approvals
Completed protect function
1 year warranty
CE, FCC, UL, PSE, LVD, KC and GS-approved

Suitable for extremely wide range of applications, includes:

Laptop
Set-top box
ADSL
Hard disk drive
Audio and video product
Household appliance

Parameters:

Input:
- Voltage: 100-240V AC
- Frequency: 50-60Hz
Output:
- Load regulation: 5% typical
Ripple: 1-2%, P-P maximum for output voltage and full load
Transit response: 0.5ms for 50%
Load change typical
Holdup time: 10ms full load
Protection: short-circuit/over-voltage/-current
DC cord: 18/16/14AWG
With electronically
Topology: switching flyback
Hi-pot withstand: 3000V AC primary-secondary
Leakage current: 0.25mA at 2-pin
Efficiency: meet CEC and energy star
EMI conduction and radiation: compliance to EN 55022 Class B
Harmonic current: compliance to EN 61000-3-2 and 3
EMS immunity: compliance to EN 61000-4-2, 3.4, 5, 6, 8 and 11
MTBF: 50,000 calculated hours at 25, by ML-HDBK-217F

Light, extra slim, sleek and compact design

Green power, full complies with CEC level V and MEPS V EUP2011

High-power density

Extra safe design, have got their respective safety approvals

Completed protect function

1 year warranty

CE, FCC, UL, PSE, LVD, KC and GS-approved

Laptop

Set-top box

ADSL

Hard disk drive

Audio and video product

Household appliance

Input:

Voltage: 100-240V AC
Frequency: 50-60Hz

Output:

Load regulation: 5% typical

Ripple: 1-2%, P-P maximum for output voltage and full load

Transit response: 0.5ms for 50%

Load change typical

Holdup time: 10ms full load

Protection: short-circuit/over-voltage/-current

DC cord: 18/16/14AWG

With electronically

Topology: switching flyback

Hi-pot withstand: 3000V AC primary-secondary

Leakage current: 0.25mA at 2-pin

Efficiency: meet CEC and energy star

EMI conduction and radiation: compliance to EN 55022 Class B

Harmonic current: compliance to EN 61000-3-2 and 3

EMS immunity: compliance to EN 61000-4-2, 3.4, 5, 6, 8 and 11

MTBF: 50,000 calculated hours at 25, by ML-HDBK-217F

Voltage: 100-240V AC

Frequency: 50-60Hz

Load regulation: 5% typical
